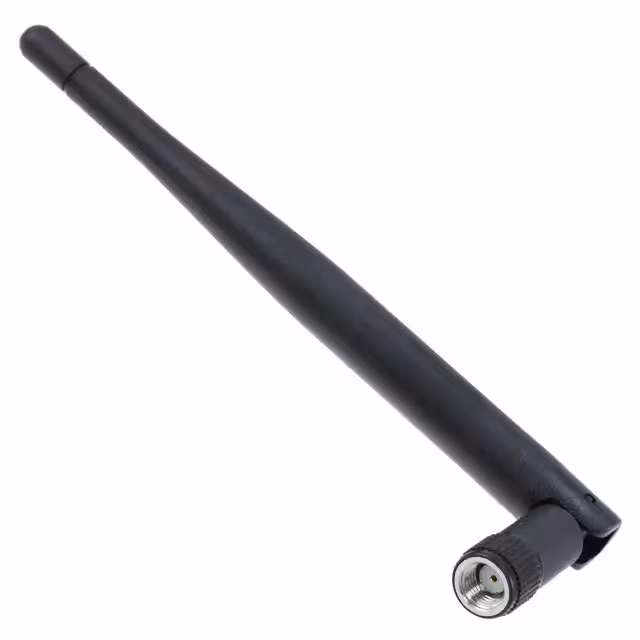

W1027

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

Design Resources :

IoT Product Selector

Height (Max) :

5.913 (150.20mm)

Number of Bands :

1

Antenna Connector Type :

RP-SMA Male

Product Type :

2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee

Package :

Bulk

Gain :

3.2dBi

RF Family/Standard :

802.15.4, WiFi

Frequency (Min) :

2400(MHz)

Center Frequency :

2450 MHz

Frequency Range :

2.4GHz ~ 2.5GHz

Product Category :

Antennas

Application :

Portable Radio Antennas

VSWR :

1.9

Product Status :

Active

Ingress Protection :

-

Product :

Indoor Antennas

Frequency Group :

UHF (2GHz ~ 3GHz)

RoHS :

Details

Antenna Type :

Whip, Tilt

Subcategory :

Antennas

Termination :

RP-SMA Male

Rad Hardened :

No

Type :

Helical

Mounting Type :

Connector Mount

Antenna Gain :

3.2dBi

Length :

108 mm

Typical Antenna Gain :

3.2 dB

Mounting Style :

Panel Mount

Features :

-

Packaging :

Bulk

Datasheets :

W1027

Brand :

Pulse Electronics

Featured Product :

Wireless External Antennas

Operating Temperature Classification :

Industrial

PCN Design/Specification :

W1027,28B,37,38 Dimension Changes 23/Sep/2013

VSWR (Max) :

1.9

Frequency :

2500(MHz)

Applications :

WLAN, Zigbee™

Cable Type :

-

Maximum VSWR :

1.9

Frequency (Center/Band) :

2.4GHz

Online Catalog :

Pulse - External

Manufacturer :

Pulse

Series :

-

Style :

Tilt/Swivel

Operating Temperature (Min) :

-40C

Impedance :

50 OHM

Termination Style :

Connector

Operating Temperature (Max) :

85C

Return Loss :

-

Cable Length :

124 mm
