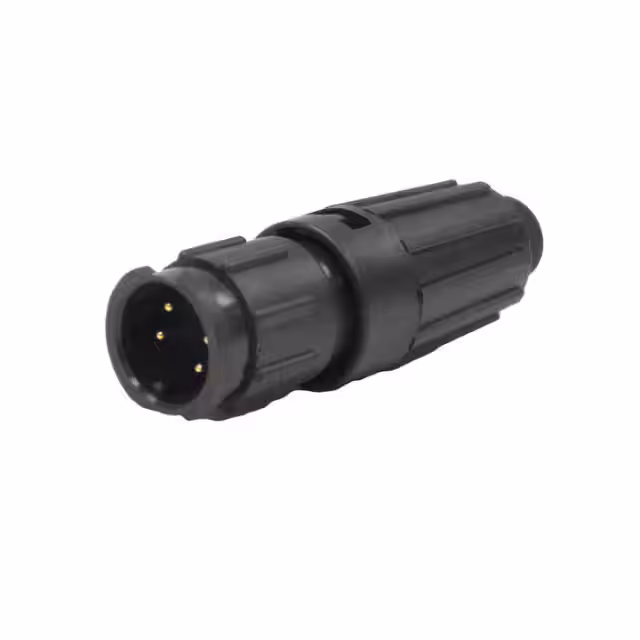

W8282-4PG-P-516
Or copy the link below:
- Mfr.Part #
- W8282-4PG-P-516
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- MINI-CON-X INSTA-CLICK CONNECTOR
- Stock
- 12,943
- In Stock ：
- 12,943
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Connector Type :
- Plug, Male Pins
- Mounting Type :
- Free Hanging (In-Line)
- Manufacturer :
- Switchcraft
- Tradename :
- Mini-Con-X
- Ingress Protection :
- IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
- Shell Size - Insert :
- -
- Contact Plating :
- Gold
- Shielding :
- Unshielded
- Mating Style :
- Latch Lock
- Brand :
- Conxall / Switchcraft
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Product :
- Connectors
- Mounting Angle :
- Straight
- Mounting Feature :
- -
- Subcategory :
- Circular Connectors
- Contact Gender :
- Pin (Male)
- Applications :
- Automotive, Communication Systems, Instrumentation
- Backshell Material, Plating :
- Thermoplastic
- Orientation :
- Keyed
- Shell Finish :
- -
- Housing Material :
- Thermoplastic (TP)
- Current Rating :
- 7.5 A
- Contact Finish Thickness - Mating :
- -
- Mounting Style :
- CABLE
- Shell Style :
- Straight
- Termination Style :
- Solder
- Color :
- Black
- Package :
- Bulk
- Termination :
- Solder Cup
- Packaging :
- Bulk
- RoHS :
- Details
- Insert Material :
- Thermoplastic
- Product Category :
- Standard Circular Connector
- Fastening Type :
- Bayonet Lock
- Operating Temperature :
- -40°C ~ 85°C
- Series :
- Mini-Con-X? Insta-Click?
- Cable Opening :
- 0.160" ~ 0.180" (4.06mm ~ 4.57mm)
- Features :
- Backshell, Coupling Nut, UV Resistant
- Base Product Number :
- W8282-4
- Product Status :
- Active
- IP Rating :
- IP66, IP67, IP68
- Number of Positions :
- 4
- Contact Finish - Mating :
- Gold
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- -
- Mating Cycles :
- 300 Cycles
- Product Type :
- Standard Circular Connector
- Shell Size, MIL :
- -
- Voltage Rating :
- 300VAC/DC
- Current Rating (Amps) :
- Varies by Wire Gauge
- Datasheets
- W8282-4PG-P-516
Plug, Male Pins Polybutylene Terephthalate (PBT) Free Hanging (In-Line) 4 Positions Solder Cup Gold - Bulk Keyed Bayonet Lock
W8282-4PG-P-516 Overview
Packaging is in the form of Plug, Male Pins.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Mini-Con-X? Insta-Click? Series.Devices operate at -40°C ~ 85°C operating temperatures.
W8282-4PG-P-516 Features
Mini-Con-X? Insta-Click? series
W8282-4PG-P-516 Applications
There are a lot of Conxall/Switchcraft
W8282-4PG-P-516 Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
