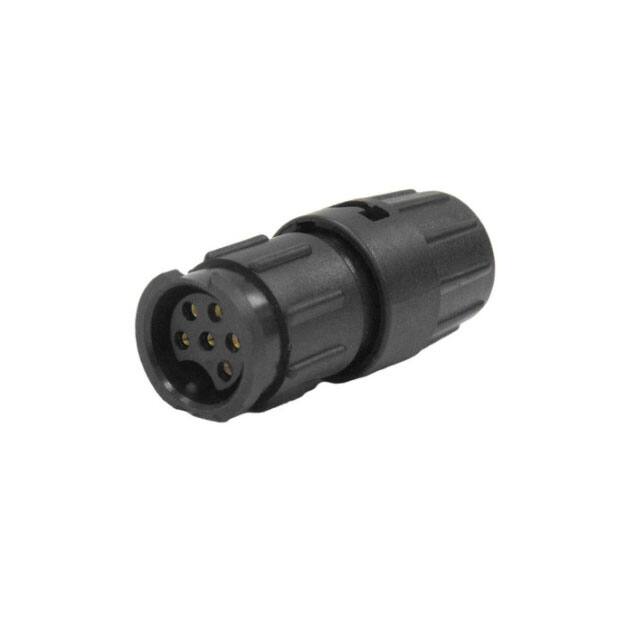

W8282-6SG-P-311
Or copy the link below:
- Mfr.Part #
- W8282-6SG-P-311
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- MINI-CON-X INSTA-CLICK CONNECTOR
- Stock
- 11,923
- In Stock ：
- 11,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Manufacturer :
- Switchcraft
- Contact Gender :
- Socket (Female)
- Shielding :
- Unshielded
- Product :
- Connectors
- Cable Opening :
- 0.090" ~ 0.140" (2.29mm ~ 3.56mm)
- Subcategory :
- Circular Connectors
- Package :
- Bulk
- Fastening Type :
- Bayonet Lock
- Mounting Feature :
- -
- Mounting Type :
- Free Hanging (In-Line)
- RoHS :
- Details
- Termination :
- Solder Cup
- Contact Material :
- COPPER ALLOY
- Shell Finish :
- -
- Shell Style :
- Straight
- Current Rating (Amps) :
- Varies by Wire Gauge
- Number of Positions :
- 6
- Contact Finish Thickness - Mating :
- -
- Applications :
- Automotive, Communication Systems, Instrumentation
- Current Rating :
- 7.5 A
- Orientation :
- Keyed
- Backshell Material, Plating :
- Thermoplastic
- Product Category :
- Standard Circular Connector
- Insert Material :
- Thermoplastic
- Housing Material :
- Thermoplastic (TP)
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -40°C ~ 85°C
- Color :
- Black
- Voltage Rating :
- 300VAC/DC
- Termination Style :
- Solder
- Material Flammability Rating :
- -
- Mounting Angle :
- Straight
- Mating Cycles :
- 300 Cycles
- Shell Size - Insert :
- -
- IP Rating :
- IP66, IP67, IP68
- Mounting Style :
- CABLE
- Shell Size, MIL :
- -
- Features :
- Backshell, Coupling Nut, UV Resistant
- Contact Plating :
- Gold
- Ingress Protection :
- IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
- Product Status :
- Active
- Series :
- Mini-Con-X? Insta-Click?
- Tradename :
- Mini-Con-X
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Mating Style :
- Latch Lock
- Brand :
- Conxall / Switchcraft
- Product Type :
- Standard Circular Connector
- Packaging :
- Bulk
- Connector Type :
- Plug, Female Sockets
- Datasheets
- W8282-6SG-P-311
Plug, Female Sockets Polybutylene Terephthalate (PBT) Free Hanging (In-Line) 6 Positions Solder Cup Gold - Bulk Keyed Bayonet Lock
W8282-6SG-P-311 Overview
Packaging is Plug, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Con-X? Insta-Click? Series, it can be found in this category.The device is operating at -40°C ~ 85°C Operating Temperature.
W8282-6SG-P-311 Features
Mini-Con-X? Insta-Click? series
W8282-6SG-P-311 Applications
There are a lot of Conxall/Switchcraft
W8282-6SG-P-311 Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
