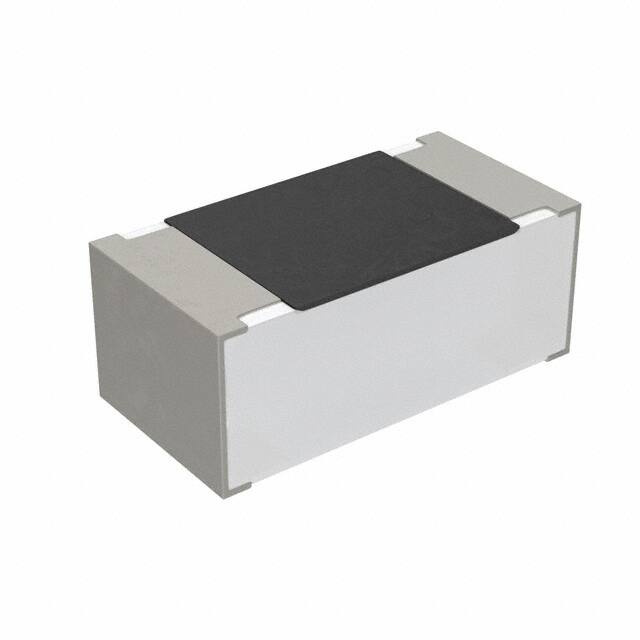

WF06P3901FTL

Manufacturer :

Walsin Technology

Product Category :

Chip Resistor - Surface Mount

Terminal Finish :

Tin (Sn)

Series :

WFxxP

Rated Temperature :

70 °C

Composition :

Thick Film

Number of Terminals :

2

ECCN Code :

EAR99

Working Voltage :

50 V

Resistance :

3.9 kOhms

Product Length :

1.6mm

Failure Rate :

-

Qualification :

-

Features :

-

Ratings :

-

Product Width :

0.8mm

Package Shape :

RECTANGULAR PACKAGE

Number of Terminations :

2

Resistance Tolerance :

± 1%

Resistor Type :

High Power

Manufacturer :

Walsin Technology Corporation

Packing Method :

TR, Paper, 7 Inch

Height - Seated (Max) :

0.024" (0.60mm)

Tolerance :

±1%

Temperature Coefficient :

±100ppm/°C

Pbfree Code :

yes

Power Rating :

125mW

Package :

Tape and Reel (TR)

Supplier Device Package :

0603

Additional Feature :

HIGH PRECISION, LASER TRIMMABLE, RATED AC VOLTAGE (V): 50

Voltage Rating :

50V

Size Code :

0603

Operating Temperature :

-55°C ~ 155°C

Surface Mount :

yes

JESD-609 Code :

e3

Reach Compliance Code :

Compliant

Terminal Shape :

WRAPAROUND

Product Status :

Active

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Power (Watts) :

0.125W, 1/8W

Rated Power Dissipation (P) :

0.125 W

Mounting Feature :

Surface Mount

Package / Case :

0603 (1608 Metric)
