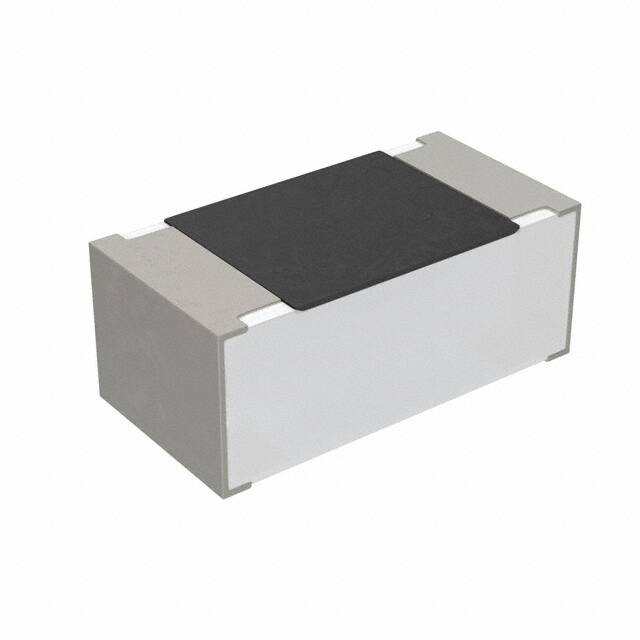

WF12P1001FTL

Manufacturer :

Walsin Technology

Product Category :

Chip Resistor - Surface Mount

Resistor Type :

High Power

Power (Watts) :

0.5W, 1/2W

Package Shape :

RECTANGULAR PACKAGE

Technology :

METAL GLAZE/THICK FILM

Height - Seated (Max) :

0.026" (0.65mm)

Failure Rate :

-

Number of Terminations :

2

Rated Power Dissipation (P) :

0.5 W

Pbfree Code :

yes

Qualification :

-

Number of Terminals :

2

Tolerance :

±1%

Resistance Tolerance :

± 1%

Size / Dimension :

0.122" L x 0.063" W (3.10mm x 1.60mm)

Manufacturer :

Walsin Technology Corporation

Reach Compliance Code :

Compliant

Package Length :

3.1 mm

Working Voltage :

200 V

Ratings :

-

Operating Temperature :

-55°C ~ 155°C

Voltage Rating :

200V

Additional Feature :

FLAME PROOF, LASER TRIMMABLE

Mounting Feature :

Surface Mount

Product Length :

3.1mm

Package :

Tape and Reel (TR)

Surface Mount :

yes

Terminal Finish :

Tin (Sn)

Power Rating :

500mW

Construction :

Chip

Package Height :

0.55 mm

Product Width :

1.6mm

Subcategory :

Fixed Resistors

ECCN Code :

EAR99

Resistance :

1 kOhms

Temperature Coefficient :

±100ppm/°C

Supplier Device Package :

1206

Package Width :

1.6 mm

Features :

Flame Retardant Coating, Safety

Terminal Shape :

WRAPAROUND

Rated Temperature :

70 °C

Series :

WFxxP

Packing Method :

TR, Paper, 7 Inch

Composition :

Thick Film

JESD-609 Code :

e3

Product Status :

Active

Size Code :

1206

Package / Case :

1206 (3216 Metric)
