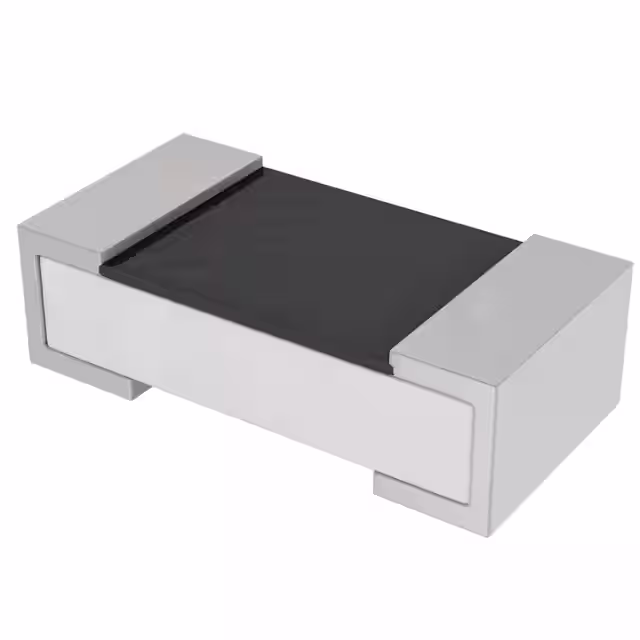

WFC08059L000FE66
Or copy the link below:
- Mfr.Part #
- WFC08059L000FE66
- Manufacturer
- Vishay / Dale
- Package / Case
- 0805 (2012 Metric)
- Datasheet
- Download
- Description
- RES 0.009 OHM 0.5 W 1% 0805 SMD
- Stock
- 10,078
- In Stock ：
- 10,078
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay / Dale
- Product Category :
- Chip Resistor - Surface Mount
- Type :
- Metal Foil Current Sense Resistor
- Tolerance :
- ±1%
- Brand :
- Vishay
- Size / Dimension :
- 0.079" L x 0.051" W (2.00mm x 1.30mm)
- Maximum Operating Temperature :
- + 170 C
- Product Type :
- Current Sense Resistors
- Power Rating :
- 500mW
- Application :
- Current Sense
- Resistance :
- 9 mOhms
- Manufacturer :
- Vishay
- Product Category :
- Current Sense Resistors - SMD
- Height - Seated (Max) :
- 0.033" (0.85mm)
- Packaging :
- MouseReel
- Operating Temperature :
- -55°C ~ 170°C
- Composition :
- Metal Foil
- Temperature Coefficient :
- ±100ppm/°C
- Power (Watts) :
- 0.5W, 1/2W
- Product Width :
- 1.25mm
- Resistance Tolerance :
- ± 1%
- Series :
- WFC
- Features :
- Current Sense
- Mounting Style :
- PCB Mount
- Number of Terminations :
- 2
- Ratings :
- -
- Termination :
- 2 Terminal
- Supplier Device Package :
- 0805
- Width :
- 1.3 mm
- Technology :
- Metal Foil
- RoHS :
- Details
- Length :
- 2 mm
- Failure Rate :
- -
- Height :
- 0.7 mm
- Product Status :
- Active
- Product Height :
- 0.7mm
- Termination Style :
- SMD/SMT
- Product Length :
- 2.01mm
- Package / Case :
- 0805 (2012 Metric)
- Minimum Operating Temperature :
- - 55 C
- Qualification :
- -
- Subcategory :
- Resistors
- Package :
- Cut Tape (CT)
- Product :
- Metal Foil Current Sense Resistor
- Datasheets
- WFC08059L000FE66
WFC Series, Metal Foil, 9 mOhms, 0.5W, 1/2W, ±1%, -55°C ~ 170°C
