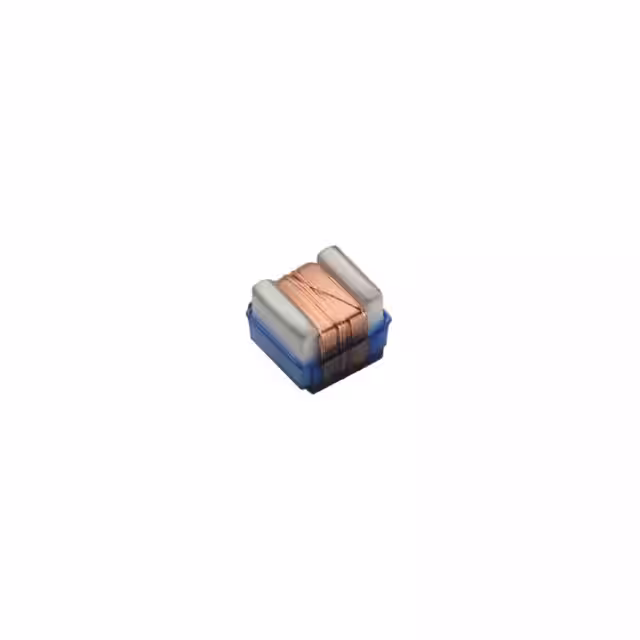

WL05JTR27

Manufacturer :

Viking Tech

Product Category :

Fixed Inductors

JESD-609 Code :

e3

DC Current :

350(mA)

Package :

Tape and Reel (TR)

Reach Compliance Code :

Compliant

Test Frequency :

100(MHz)

Factory Lead Time :

12 Weeks

Features :

-

Failure Rate :

Not Required

Quality Factor-Min (at L-nom) :

48

Package / Case :

0805 (2012 Metric)

Technology :

Wirewound

Terminal Finish :

Matte Tin (Sn)

Q :

48

Inductance :

0.27(uH)

Core Material :

Ceramic

Inductance Frequency - Test :

100 MHz

Product Diameter (mm) :

Not Required(mm)

Frequency - Self Resonant :

650MHz

Shielding :

Unshielded

Inductor Type :

GENERAL PURPOSE INDUCTOR

HTS Code :

8504.50.80.00

Inductor Application :

RF INDUCTOR

Size / Dimension :

0.090 L x 0.068 W (2.29mm x 1.73mm)

Manufacturer :

SEI Stackpole Electronics Inc

DC Resistance (DCR) :

1Ohm Max

Pbfree Code :

yes

Number of Functions :

1

Ratings :

AEC-Q200

ECCN Code :

EAR99

Height - Seated (Max) :

0.060 (1.52mm)

Series :

WL

Tolerance :

±5%

Rad Hardened :

No

Product Depth (mm) :

1.73(mm)

Mounting Type :

Surface Mount

Inductance-Nom (L) :

0.27 µH

Shape/Size Description :

RECTANGULAR PACKAGE

Product Length (mm) :

2.29(mm)

Current Rating (Amps) :

350 mA

Number of Terminals :

2

Weight :

557.918615 g

Terminal Placement :

DUAL ENDED

Product Height (mm) :

1.6(mm)

Product Status :

Active

Type :

RF Chip

Military Standard :

Not Required

Case/Size Code :

0805

Material - Core :

Ceramic

Surface Mount :

yes

Supplier Device Package :

0805

Shielded :

No

Rated Current-Max :

0.35 A

Terminal Shape :

WRAPAROUND

Case Size :

0805

Special Feature :

Q MEASURED AT 250 MHZ

Operating Temp Range :

-40C to 125C

Tolerance (+ or -) :

5%

Operating Temperature :

-40°C ~ 125°C

Self Resonant Frequency :

650(MHz)

DC Resistance :

1(ohm)

Q @ Freq :

48 @ 250MHz

Current - Saturation (Isat) :

-

Packaging :

Tape and Reel
