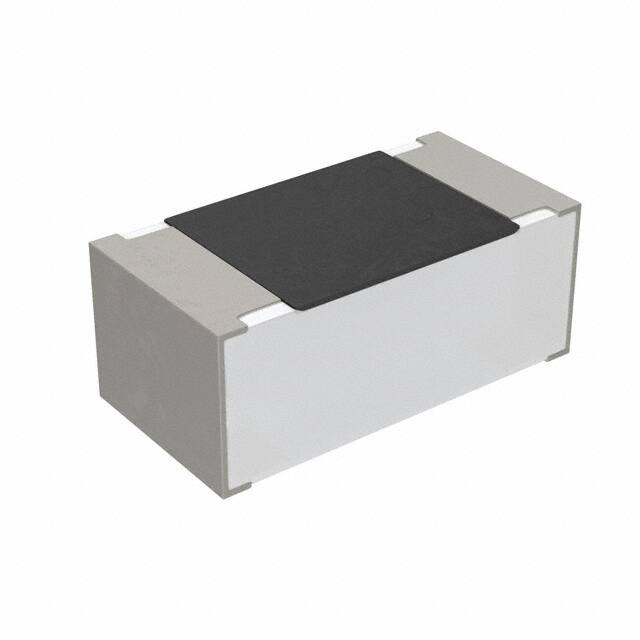

WR04W4704FTL

Manufacturer :

Walsin Technology

Product Category :

Chip Resistor - Surface Mount

HTS Code :

8533.21.00.30

Technology :

Thick Film

Tolerance :

1 %

ECCN Code :

EAR99

Height - Seated (Max) :

0.016 (0.40mm)

Rated Power Dissipation (P) :

0.0625 W

Power (Watts) :

0.063W, 1/16W

Ratings :

-

Additional Feature :

LASER TRIMMABLE, RATED AC VOLTAGE: 50V

Packing Method :

TR, Paper, 7 Inch

Subcategory :

Resistors

Termination Style :

SMD/SMT

Working Voltage :

50 V

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Temperature Coefficient :

± 100ppm/°C

Resistance Tolerance :

± 1%

Construction :

RECTANGULAR

Resistor Type :

GENERAL PURPOSE

Size / Dimension :

0.039 L x 0.020 W (1.00mm x 0.50mm)

Brand :

Walsin

Number of Terminals :

2

Series :

WR

Length :

1 mm

Maximum Operating Temperature :

+ 155 C

Failure Rate :

-

Composition :

Thick Film

Resistance :

4.7MOhm

Supplier Device Package :

0402

Product Status :

Active

Surface Mount :

yes

Product Width :

0.5mm

Package Width :

0.5 mm

Packaging :

Cut Tape

Product Length :

1mm

Qualification :

-

Rated Temperature :

70 °C

Terminal Shape :

WRAPAROUND

Package Height :

0.35 mm

Product Type :

Thick Film Resistors

Package :

Tape and Reel (TR)

Mounting Feature :

Surface Mount

Package Length :

1 mm

Mounting Style :

PCB Mount

JESD-609 Code :

e3

Height :

0.35 mm

Number of Terminations :

2

Operating Temperature :

-55°C ~ 155°C

Features :

-

Voltage Rating :

50V

Reach Compliance Code :

Compliant

Power Rating :

62.5mW

Manufacturer :

Walsin

Width :

0.5 mm

Package / Case :

0402 (1005 Metric)

Size Code :

0402

Product Category :

Thick Film Resistors - SMD

Minimum Operating Temperature :

- 55 C
