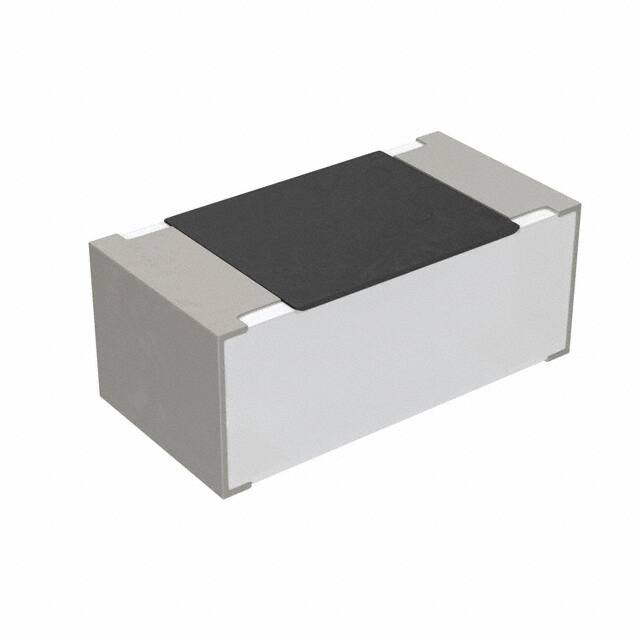

WW12NR005FTL

Manufacturer :

Walsin Technology

Product Category :

Chip Resistor - Surface Mount

Temperature Coefficient :

±70ppm/°C

Rated Temperature :

70 °C

Failure Rate :

-

Operating Temperature :

-55°C ~ 155°C

Size / Dimension :

0.126" L x 0.063" W (3.20mm x 1.60mm)

Mounting Feature :

Surface Mount

Construction :

RECTANGULAR

Manufacturer :

Walsin Technology Corporation

Resistance :

5 MOhms

Product Status :

Active

Composition :

Metal Film

Working Voltage :

200 V

Height - Seated (Max) :

0.031" (0.80mm)

Package Length :

3.1 mm

Surface Mount :

yes

ECCN Code :

EAR99

Package / Case :

1206 (3216 Metric)

Tolerance :

±1%

Size Code :

1206

Terminal Shape :

WRAPAROUND

Supplier Device Package :

1206

JESD-609 Code :

e3

Reach Compliance Code :

Compliant

Ratings :

-

Series :

WW12N

Resistor Type :

FIXED RESISTOR

Features :

Current Sense

Package Height :

0.6 mm

Packing Method :

TR, Paper, 7 Inch

Number of Terminations :

2

Terminal Finish :

Tin (Sn)

Additional Feature :

RATED AC VOLTAGE (V) : 200

Rated Power Dissipation (P) :

1 W

Package :

Tape and Reel (TR)

Number of Terminals :

2

Power (Watts) :

1W

Package Width :

1.6 mm
