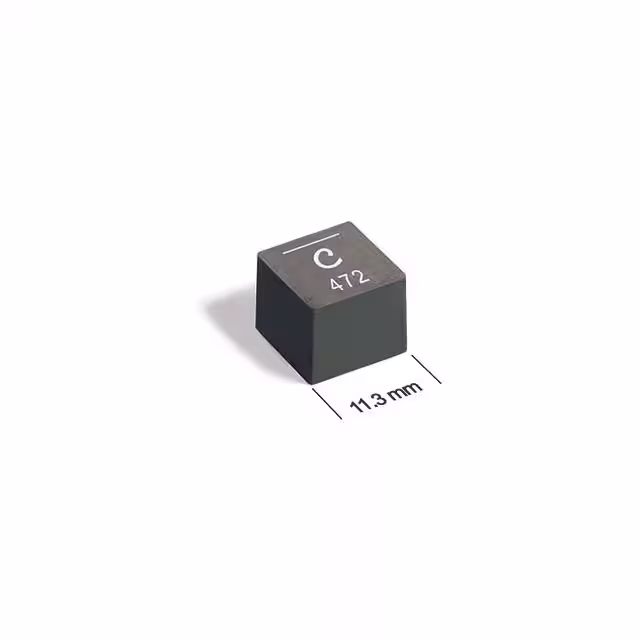

XAL1010-221MED

Manufacturer :

COILCRAFT

Product Category :

Fixed Inductors

Max Operating Temperature :

125°C

Packing Method :

TR, 13 INCH

Tolerance :

20%

Inductance-Nom (L) :

0.22 µH

Max DC Current :

55.5A

RoHS Status :

RoHS Compliant

Test Frequency :

100kHz

Case/Size Code :

3945

Shape/Size Description :

RECTANGULAR PACKAGE

Inductance :

220 nH

Inductor Type :

GENERAL PURPOSE INDUCTOR

Width :

10.5mm

Material - Core :

Composite

ECCN Code :

EAR99

Number of Functions :

1

Frequency - Self Resonant :

115MHz

Inductor Application :

POWER INDUCTOR

Pbfree Code :

yes

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Height :

10mm

Min Operating Temperature :

-40°C

Terminal Shape :

ONE SURFACE

Lead Free :

Contains Lead

Shielding :

Shielded

HTS Code :

8504.50.80.00

Length :

11.8mm

Number of Terminations :

2

Terminal Finish :

Tin/Silver (Sn96.5Ag3.5)

DC Resistance (DCR) - Parallel :

500MOhm

Surface Mount :

yes

Terminal Placement :

DUAL ENDED

Reference Standard :

AEC-Q200

JESD-609 Code :

e2

Termination :

SMD/SMT
