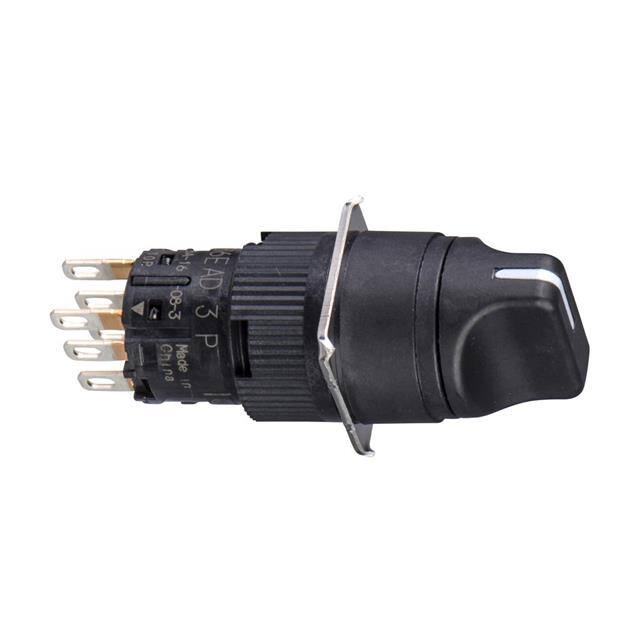

XB6EAD232P

Manufacturer :

Schneider Electric

Product Category :

Contact Material :

Silver

Voltage Rating - DC :

24 V

Series :

Harmony XB6

With front ring :

yes

Number of contacts as normally open contact :

2

Termination Style :

Solder, Quick Connect - 0.110" (2.8mm)

Features :

-

Number of Positions :

3

Type of electric connection :

Flat plug-in connection

Illumination :

Illuminated

Operating Temperature Range :

-10 → +55°C

Illumination Voltage (Nominal) :

24 VDC

Panel Cutout Dimensions :

Circular - 16.00mm Dia

Brand :

Schneider Electric

Subcategory :

Switches

Switch Type :

PUSHBUTTON SWITCH

Product Type :

Rotary Switches

Package :

Box

Maximum Operating Temperature :

+55°C

Electrical Life :

100,000 Cycles

Switch Function :

On-Off-On

Depth Behind Flange :

-

Colour front ring :

Black

Ingress Protection :

IP65 - Dust Tight, Water Resistant

Number of contacts as change-over contact :

0

Illumination Type, Color :

LED, Red

Mounting Type :

Panel Mount

Product Status :

Active

Circuit :

DPDT

Current Rating (Amps) :

1.5A (AC), 1A (DC)

Manufacturer :

Schneider Electric

Operating Temperature :

-10°C ~ 55°C

Material front ring :

Plastic

Number of contacts as normally closed contact :

0

Minimum Operating Temperature :

-10°C

Reach Compliance Code :

Unknown

With light source :

No

IP Rating :

IP65

Type :

Standard

Mechanical Life :

250,000 Cycles

Degree of protection (IP) :

IP65/IP67

Contact Configuration :

2 NO

Type of control element :

Short thumb-grip

Approval Agency :

CCC, cURus

Degree of protection (NEMA) :

Other

Product Category :

Rotary Switches

Voltage Rating - AC :

120 V
