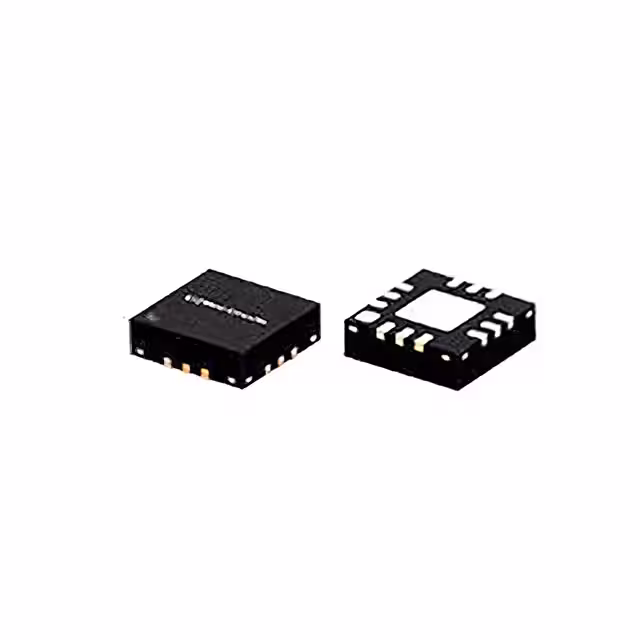

XHF-63M+
Or copy the link below:
- Mfr.Part #
- XHF-63M+
- Manufacturer
- Mini-Circuits
- Package / Case
- 12-VQFN Exposed Pad
- Datasheet
- Download
- Description
- RF FILTER HI PASS 12.45GHZ 12QFN
- Stock
- 859
- In Stock ：
- 859
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Mini-Circuits
- Product Category :
- RF Filters
- Package / Case :
- 12-VQFN Exposed Pad
- Product Status :
- Active
- Impedance :
- 50 Ohms
- Ripple :
- -
- Manufacturer :
- Mini-Circuits
- Size / Dimension :
- 0.118" L x 0.118" W (3.00mm x 3.00mm)
- Minimum Operating Temperature :
- - 55 C
- Product Category :
- Signal Conditioning
- Packaging :
- MouseReel
- Product Type :
- Signal Conditioning
- Series :
- -
- Mounting :
- SMD/SMT
- Termination Style :
- SMD/SMT
- Brand :
- Mini-Circuits
- Height (Max) :
- 0.039" (0.99mm)
- Package :
- Digi-Reel?
- Maximum Operating Temperature :
- + 105 C
- Frequency Range :
- 5900 MHz to 19000 MHz
- Product :
- High Pass Filters
- RoHS :
- Details
- Frequency :
- 12.45GHz Center
- Bandwidth :
- 13.1 GHz
- Mounting Type :
- Surface Mount
- Insertion Loss :
- 2.1dB
- Subcategory :
- Filters
- Filter Type :
- High Pass
- Type :
- Reflectionless
- Datasheets
- XHF-63M+
XHF-63M+ datasheet pdf and RF Filters product details from Mini-Circuits stock available at
