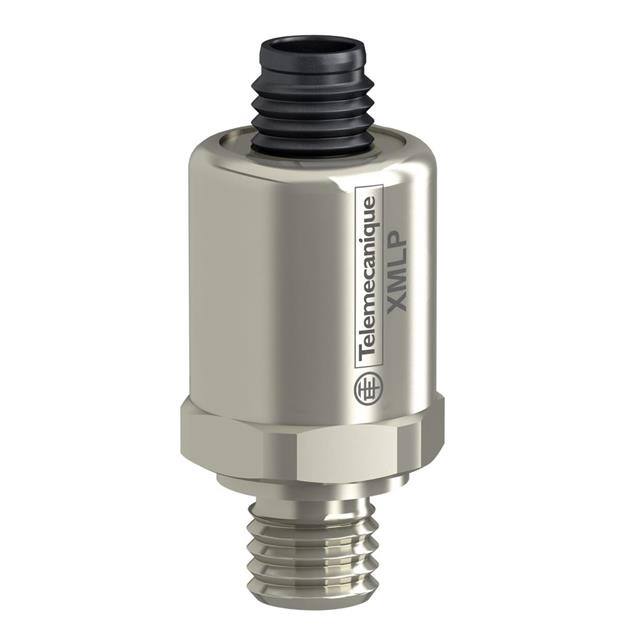

XMLPM01GD21F

Manufacturer :

Schneider Electric

Product Category :

Pressure Sensors, Transducers - Industrial

Shell Material :

Aluminum Alloy

Fastening Type :

Bayonet Lock

Mounting Feature :

-

Shell Size - Insert :

14S-2

Insert Material :

Neoprene

Applications :

-

Orientation :

N (Normal)

Termination :

Crimp

Shell Size, MIL :

-

Package :

Bulk

Connector Type :

Plug, Male Pins

Current Rating (Amps) :

13A

Backshell Material, Plating :

Aluminum Alloy, Olive Drab Cadmium

Contact Finish Thickness - Mating :

-

Product Status :

Active

Shielding :

-

Base Product Number :

CIR06

Ingress Protection :

Environment Proof

Material Flammability Rating :

-

Cable Opening :

-

Mounting Type :

Free Hanging (In-Line)

Shell Finish :

Olive Drab Cadmium

Color :

Olive Drab

Operating Temperature :

-55°C ~ 125°C

Series :

CIR

Voltage Rating :

200VAC, 250VDC

Number of Positions :

4

Contact Material :

COPPER ALLOY

Contact Finish - Mating :

Gold

Primary Material :

Metal

Features :

Backshell, Cable Clamp, Coupling Nut
