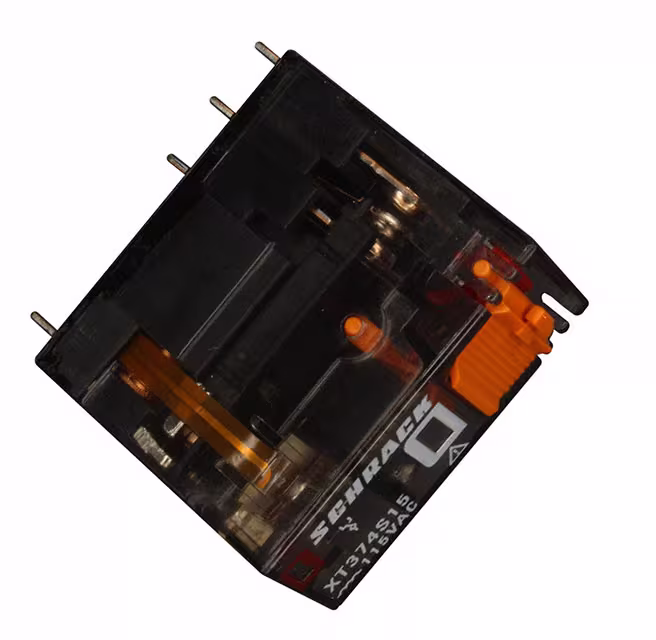

XT374S15
Or copy the link below:
- Mfr.Part #
- XT374S15
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 16A 115V
- Stock
- 91
- In Stock ：
- 91
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Coil Insulation :
- -
- Manufacturer :
- TE Connectivity
- Coil Power :
- 0.58 VA
- Dropout Volt :
- 17.3VAC
- Contact Termination :
- Quick Connect Terminal
- Termination Style :
- Plug In
- Turn On Voltage (Max) :
- 86.3 VAC
- Operating Temperature :
- -40°C ~ 70°C
- Height :
- 26.7 mm
- Contact Arrangement :
- SPDT
- Package / Case :
- Dust Cover
- Coil Resistance :
- 8.1 kOhms
- Power Consumption :
- 760 mVA
- Coil Suppression Diode :
- No
- Product :
- Power Relays
- Base Product Number :
- XT37
- Must Release Voltage :
- 17.3 VAC
- Brand :
- TE Connectivity
- Seal Rating :
- -
- Mounting Type :
- Socketable
- Release Time :
- 6ms
- Contact Form :
- SPDT (1 Form C)
- Operate Time :
- 9ms
- Subcategory :
- Relays
- Features :
- LED Indicator
- LED Indicator :
- No
- Rad Hardened :
- No
- Coil Type :
- Non Latching
- Type :
- Industrial Relay
- RoHS :
- Details
- Contact Current Rating :
- 16(A)
- Mounting Style :
- Plug-In
- Packaging :
- Tube
- Product Category :
- General Purpose Relays
- Width :
- 13.7 mm
- Relay Construction :
- Non-Latching
- Pick-up Voltage (Max) :
- 97.8VAC
- Contact Material :
- Silver Nickel (AgNi)
- Coil Current :
- 6.6mA
- Seal :
- Unsealed
- Product Type :
- General Purpose Relays
- Coil Termination :
- Quick Connect Terminal
- Length :
- 29 mm
- Must Operate Voltage :
- 86.3 VAC
- Contact Rating (Current) :
- 16A
- Relay Type :
- GENERAL PURPOSE
- Turn Off Voltage (Min) :
- 17.3 VAC
- Coil Voltage :
- 115VAC
- Product Status :
- Obsolete
- Coil Voltage AC :
- 115
- Package :
- Tube
- Switching Voltage :
- 400VAC - Max
- Series :
- XT, SCHRACK
- Datasheets
- XT374S15
