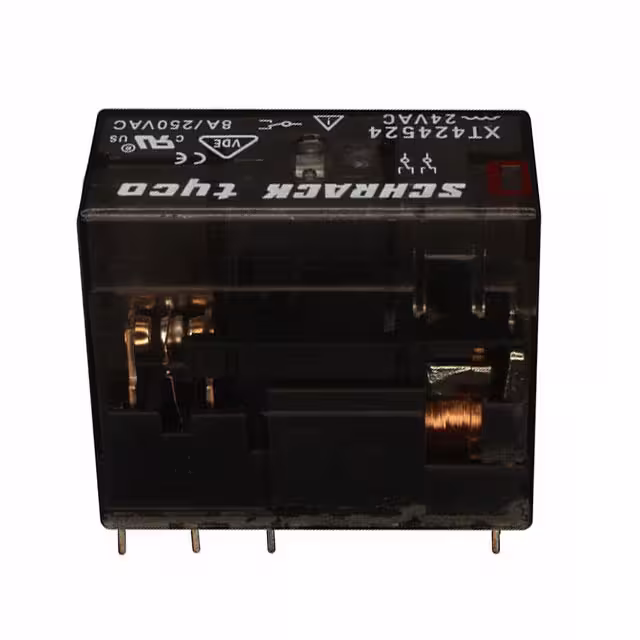

XT424524
Or copy the link below:
- Mfr.Part #
- XT424524
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 8A 24V
- Stock
- 152
- In Stock ：
- 152
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Mounting Type :
- Socketable
- Contact Rating (Current) :
- 8A
- Package / Case :
- Dust Cover
- Seal :
- FLUX SEALED
- Packaging :
- Tube
- Base Product Number :
- XT42
- Height :
- 26.7 mm
- RoHS :
- Details
- Turn On Voltage (Max) :
- 18 VAC
- Product Depth (mm) :
- 13(mm)
- Product Length (mm) :
- 29(mm)
- Turn Off Voltage (Min) :
- 3.6 VAC
- Brand :
- TE Connectivity
- Pick-up Voltage (Max) :
- 19.2VAC
- Contact Arrangement :
- DPDT
- Rad Hardened :
- No
- Coil Insulation :
- Class F
- Dropout Volt :
- 3.6VAC
- Coil Power :
- 0.58 VA
- Relay Type :
- GENERAL PURPOSE
- Product Type :
- General Purpose Relays
- Maximum Power Rating :
- 2KVA
- Coil Voltage AC :
- 24
- Power Consumption :
- 760 mVA
- Coil Voltage :
- 24VAC
- Product Height (mm) :
- 26.7(mm)
- Pin Count :
- 8
- Mounting Style :
- Plug-In
- Release Time :
- 6ms
- Seal Rating :
- -
- Series :
- XT, SCHRACK
- Width :
- 13.7 mm
- Length :
- 29 mm
- Operating Temperature :
- -40°C ~ 70°C
- Contact Current Rating :
- 15(A)
- Must Operate Voltage :
- 18 VAC
- Coil Type :
- Non Latching
- Product Category :
- General Purpose Relays
- Coil Resistance :
- 350 Ohms
- Switching Voltage :
- 400VAC - Max
- Contact Termination :
- Quick Connect Terminal
- Contact Form :
- DPDT (2 Form C)
- Coil Suppression Diode :
- No
- Features :
- Insulation - Class F
- Operating Temp Range :
- -40C to 70C
- Product :
- Power Relays
- Termination Style :
- Plug In
- Type :
- Heavy Duty
- Coil Current :
- 31.6mA
- Product Status :
- Obsolete
- Manufacturer :
- TE Connectivity
- Must Release Voltage :
- 3.6 VAC
- Subcategory :
- Relays
- Relay Construction :
- Non-Latching
- LED Indicator :
- No
- Operate Time :
- 9ms
- Coil Termination :
- Quick Connect Terminal
- Contact Material :
- Silver Nickel (AgNi)
- Voltage Rating (VAC) :
- 400(V)
- Package :
- Tube
- Datasheets
- XT424524
