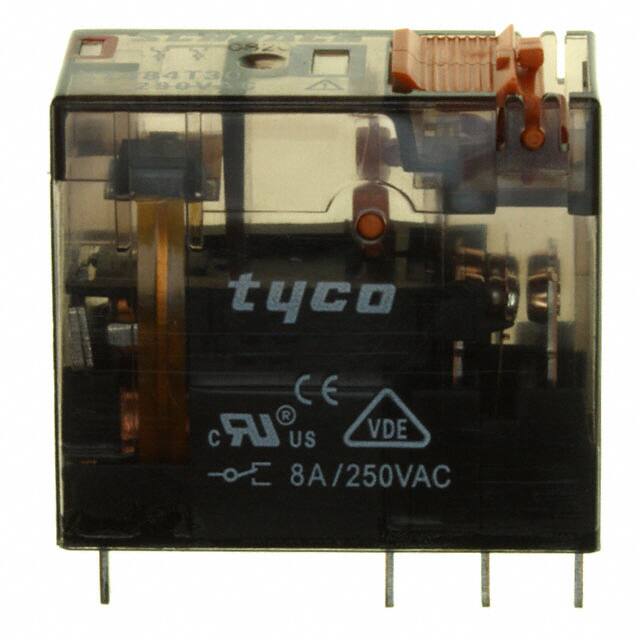

XT484T30
Or copy the link below:
- Mfr.Part #
- XT484T30
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 8A 230V
- Stock
- 153
- In Stock ：
- 153
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Switching Voltage :
- 400VAC - Max
- Operating Temperature :
- -40°C ~ 70°C
- Contact Form :
- 2 Form C
- Type :
- Industrial Relay
- Product Depth (mm) :
- 13(mm)
- Maximum Power Rating :
- 2KVA
- Termination Style :
- PC Pin
- Package :
- Tube
- Product Status :
- Obsolete
- Must Release Voltage :
- 34.5 VAC
- Release Time :
- 6 ms
- Pick-up Voltage (Max) :
- 184VAC
- Relay Type :
- GENERAL PURPOSE
- Length :
- 29 mm
- Height :
- 25.6 mm
- Package / Case :
- Dust Cover
- Features :
- Lighted Indicator
- Voltage Rating (VAC) :
- 400(V)
- Seal :
- FLUX SEALED
- Product Height (mm) :
- 26.7(mm)
- Coil Voltage AC :
- 230
- Product Length (mm) :
- 29(mm)
- Base Product Number :
- XT48
- Coil Voltage :
- 230VAC
- Mounting Type :
- Socketable
- Operate Time :
- 9 ms
- Coil Resistance :
- 32500(ohm)
- Coil Suppression Diode :
- No
- Contact Termination :
- Plug In
- Coil Current :
- 3.2 mA
- Mounting Style :
- Plug-In
- LED Indicator :
- yes
- Pin Count :
- 8
- Operating Temp Range :
- -40C to 70C
- Must Operate Voltage :
- 172.5 VAC
- Contact Arrangement :
- DPDT
- Contact Material :
- Silver Nickel 90/10
- Coil Type :
- Non Latching
- Dropout Volt :
- 34.5VAC
- Contact Current Rating :
- 15(A)
- Series :
- XT, SCHRACK
- Coil Insulation :
- -
- Packaging :
- Tube
- Relay Construction :
- Non-Latching
- Contact Rating (Current) :
- 8 A
- Width :
- 13 mm
- Product :
- Power Relays
- Seal Rating :
- -
- Rad Hardened :
- No
- Datasheets
- XT484T30
