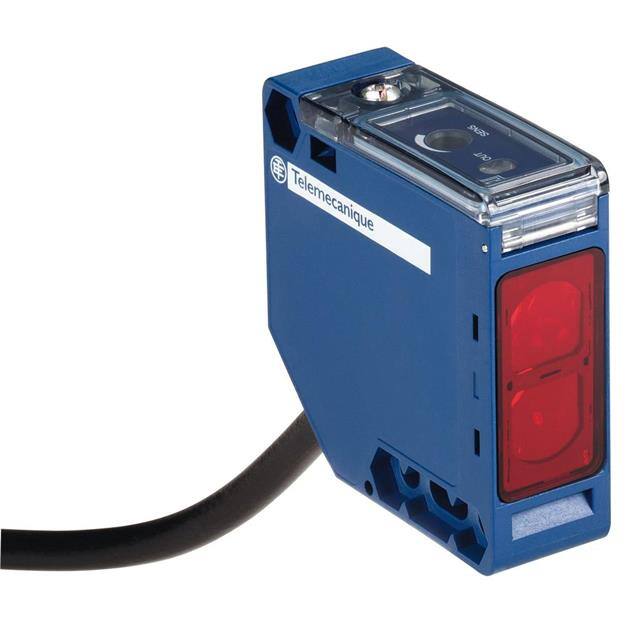

XUK2APBNL2R

Manufacturer :

Schneider Electric

Product Category :

Optical Sensors - Photoelectric, Industrial

Operating Supply Voltage :

24 V

Explosion safety category for dust :

NONE

Type of electric connection :

Cable radial

Maximum Operating Temperature :

+ 55 C

Product Status :

Active

Response Time :

2ms

Suitable for safety functions :

No

Light Source :

Yellow LED

Sensing Method :

Through-Beam

Length :

50 mm

Ratings :

IP65

Explosion safety category for gas :

NONE

Adjustment Type :

Adjustable

Output Current :

100 mA

Operating Temperature :

-25°C ~ 55°C

Voltage type :

AC/DC

Degree of protection (IP) :

IP65

Rated control supply voltage at DC :

12 - 24

Sensing Distance :

98.43 (30m)

Max Operating Temperature :

55 °C

Series :

-

Voltage - Supply :

12V ~ 24V

Max. output current :

100

Material housing :

Plastic

Package :

Box

Ambient temperature :

-25 - 55

Ingress Protection :

IP65

Mount :

Through Hole

Minimum Operating Temperature :

- 25 C

Min Operating Temperature :

-25 °C

RoHS :

Compliant

Cable Length :

78.74 (2m)

Housing Material :

PBT

Width :

18 mm

Connection Method :

CABLE

Height :

18 mm

Output Configuration :

PNP-NC
