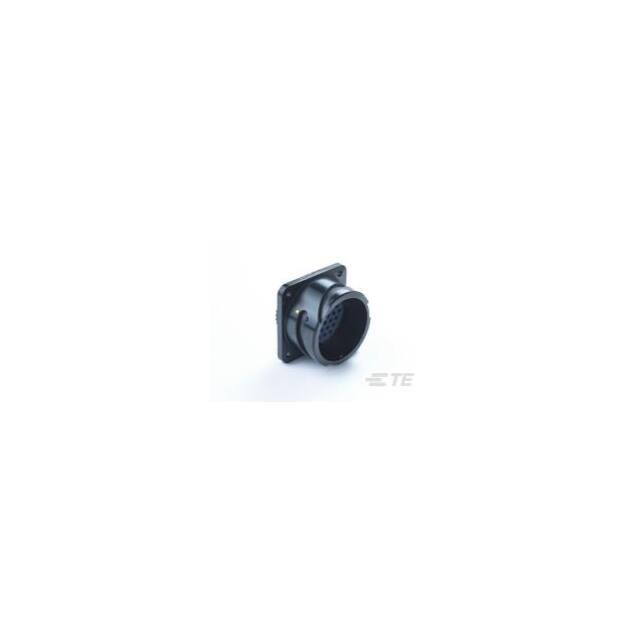

Y5015-000000100141
Or copy the link below:
- Mfr.Part #
- Y5015-000000100141
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- FIXED PIN CONNECTOR
- Stock
- 54
- In Stock ：
- 54
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Unclassified
- Number of Pins :
- 37
- Schedule B :
- 8536694020/8536694020/8536694020/8536694020/8536694020
- Mounting Style :
- Flange
- Lifecycle Status :
- Production (Last Updated: 1 month ago)
- Number of Positions :
- 37
- Gender :
- RCP
- Insulation Material :
- Rubber
- Operating Temp Range :
- -55C to 200C
- Number of Terminals :
- 37
- Number of Ports :
- 1(Port)
- Min Operating Temperature :
- -55 °C
- Shell Plating :
- ZINC COLBALT
- Product Length (mm) :
- 35.8(mm)
- Shielding :
- Shielded
- Rad Hardened :
- No
- Contact Gender :
- Pin
- UL Listed :
- No
- Type :
- Circular
- Plating :
- Chromate
- Contact Material :
- COPPER ALLOY
- Current Rating (Max) :
- 22(A)
- Country of Origin :
- US
- Preloaded :
- No
- Product Height (mm) :
- 51.1(mm)
- RoHS :
- Non-Compliant
- Max Operating Temperature :
- 200 °C
- Connector Type :
- Pin, Plug
- Shell Size / Insert Arrangement :
- 28-21
- Product Diameter (mm) :
- Not Required(mm)
- Product Depth (mm) :
- 51.1(mm)
- Strain Relief :
- No
- Voltage Rating :
- 700VDC/700VAC
- Shell Material :
- Aluminium
- Contact Plating :
- GOLD/SILVER
- Contact Classification :
- 37Signal
- Body Orientation :
- Straight
- Family :
- CIRH
- Termination Method :
- Crimp
- Number of Contacts :
- 37(POS)
- Datasheets
- Y5015-000000100141
Pin, Plug Aluminium 37 Positions
Y5015-000000100141 Overview
The product comes in a package of Pin, Plug.37 pins are present on the device.Use it when the temperature is below 200 °C.Temperatures below -55 °C are required for this device to operate.
Y5015-000000100141 Features
Y5015-000000100141 Applications
There are a lot of TE Connectivity
Y5015-000000100141 Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
