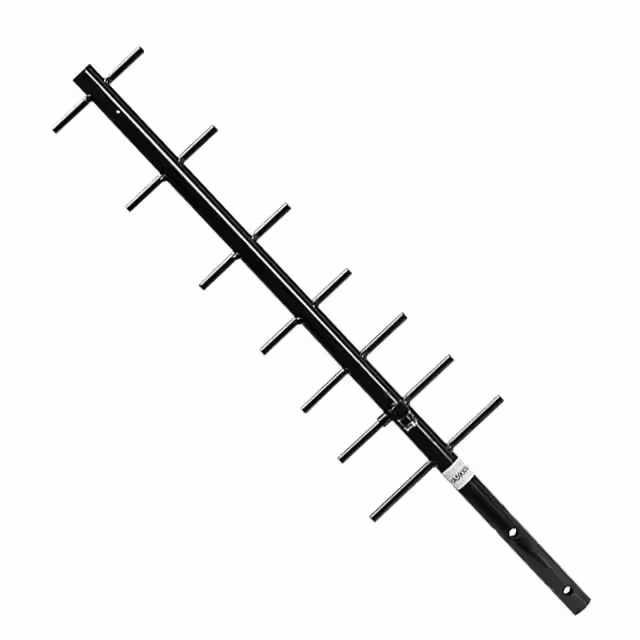

YA5900W

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

RF Family/Standard :

-

Rad Hardened :

No

Gain :

11.1dBi

Mounting :

Screw

Frequency (Center/Band) :

915MHz

VSWR (Max) :

2

Style :

7 Element

Type :

Yagi

Maximum Input Power :

300000(mW)

Packaging :

Bulk

Width :

185 mm

VSWR :

2

Polarization :

Linear

Product Type :

Cellular Antennas - GSM, LTE, 2G/3G/4G/5G

Operating Temperature (Max) :

85C

Frequency Group :

UHF (300MHz ~ 1GHz)

Antenna Gain :

11dB

Operating Temperature (Min) :

-40C

Brand :

Pulse Electronics

Ingress Protection :

-

Operating Temperature Classification :

Industrial

Termination Style :

Connector

Antenna Type :

Directional Antenna

Impedance :

50(ohm)

Applications :

GENERAL PURPOSE

Product Status :

Active

Manufacturer :

Pulse

Product :

Outdoor Antennas

RoHS :

Details

Package :

Box

Series :

Yagi

Product Category :

Antennas

Length :

762 mm

Mounting Type :

Pole Clamp

Power - Max :

300 W

Maximum Operating Temperature :

+ 85 C

Center Frequency :

925 MHz

Termination :

N Type Female

Power Rating :

300 W

Antenna Connector Type :

N Female

Height (Max) :

30.000 (762.00mm)

Application :

Harsh Environment, Remote Monitoring, SCADA, Mining, Industrial, Oil/Gas, Utility, SmartGrid, Wastewater, Irrigation, Municipal, Transportation

Cable Type :

-

Number of Bands :

1

Frequency (Min) :

890(MHz)

Frequency :

960(MHz)

Mounting Style :

Bracket Pole/Wall/U Bolt Mount

Features :

-

Minimum Operating Temperature :

- 40 C

Subcategory :

Antennas

Return Loss :

-

Frequency Range :

890MHz ~ 960MHz
