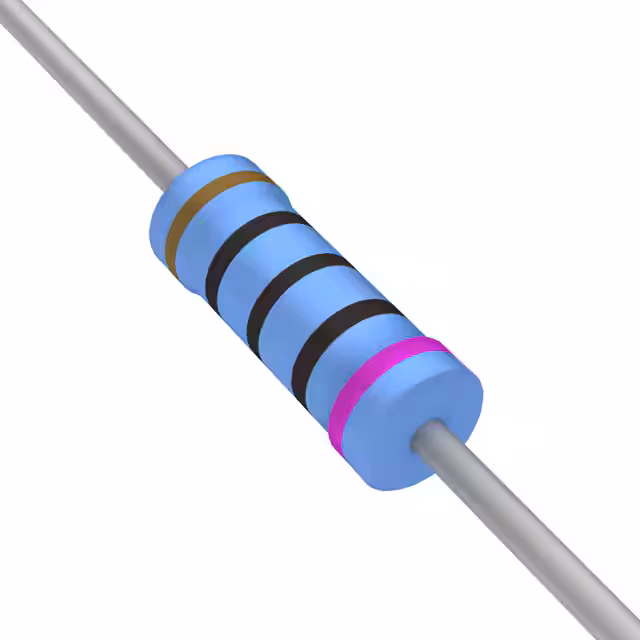

YR1B100RCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Case Style :

Epoxy

Composition :

Metal Film, Thin Film

Working Voltage :

250 V

Lifecycle Status :

Production (Last Updated: 2 weeks ago)

Power Rating :

0.25 W

Lead Length :

25 mm

Packaging :

Bulk

Factory Lead Time :

15 Weeks

Product Height (mm) :

Not Required(mm)

Package / Case :

Axial

Rated Power Dissipation (P) :

0.25 W

Product Length (mm) :

6.3(mm)

Lead Diameter :

0.6 mm

Product Status :

Active

Tolerance :

0.1%

Max Operating Temperature :

155 °C

Max Power Dissipation :

250 mW

Supplier Device Package :

Axial

Resistor Type :

FIXED RESISTOR

RoHS :

Compliant

REACH SVHC :

No SVHC

Mounting Feature :

THROUGH HOLE MOUNT

Maximum Operating Temperature :

+155°C

Voltage Rating :

250 V

Lead Spacing (nom) :

Not Required(mm)

Tolerance (+ or -) :

0.1%

Flame-Proof Support :

No

Number of Terminals :

2

Mounting Style :

PCB Mount

Height - Seated (Max) :

--

Number of Terminations :

2

Package Length :

6.3 mm

Features :

--

Termination :

Axial

Operating Temp Range :

-65C to 155C

Temperature Range @ Derated Power :

70 TO 155

Resistance Tolerance :

0.1

Product :

Precision Metal Film Resistors

Number of Resistors :

1

Voltage Rating (DC) :

250 V

Product Diameter (mm) :

2.3(mm)

Series :

YR, Neohm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Min Operating Temperature :

-65 °C

Failure Rate :

--

Mount :

Axial, Through Hole

Package Shape :

TUBULAR PACKAGE

Number of Pins :

2

Product Width :

-

Termination Style :

Axial

Construction :

Tubular

Military Standard :

Not

Product Depth (mm) :

Not Required(mm)

Product Type :

Metal Film Resistors

Reach Compliance Code :

Compliant

Packing Method :

Ammo Pack

Additional Feature :

PRECISION

Base Product Number :

YR1B

Surface Mount :

No

Temperature Coefficient :

15 ppm/°C

Diameter :

2.3 mm

Terminal Shape :

Wire

Type :

Thin Film

Brand :

TE Connectivity / Holsworthy

Minimum Operating Temperature :

-65°C

Length :

6.2992 mm

Operating Temperature :

-65°C ~ 155°C

ELV :

Compliant

Power Rating(s) :

0.25 (1/4)(W)

Product Length :

6.3

Power (Watts) :

0.25W, 1/4W

Package :

Cut Tape (CT);Tape and Box (TB);

Resistance :

100 Ω

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Qualification :

-

Product Category :

Metal Film Resistors - Through Hole

Pbfree Code :

yes

ECCN Code :

EAR99
