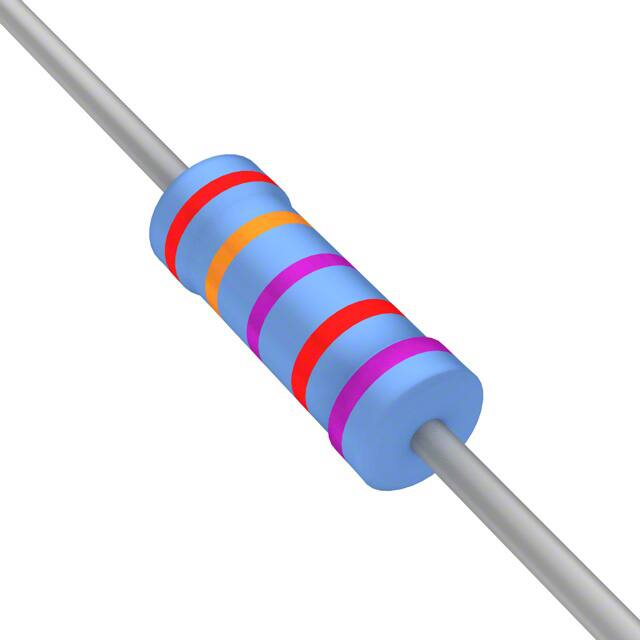

YR1B23K7CC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Package Shape :

TUBULAR PACKAGE

Factory Lead Time :

10 Weeks, 6 Days

Number of Terminations :

2

Surface Mount :

No

Voltage Rating :

500V

Lead Length :

25 mm

Construction :

Tubular

Mounting Feature :

THROUGH HOLE MOUNT

Temperature Coefficient :

15 ppm/°C

Resistance :

23700 Ω

Number of Terminals :

2

Pbfree Code :

yes

Product Length (mm) :

6.3(mm)

Package :

Tape and Box (TB)

Packaging :

Ammo

Supplier Device Package :

Axial

Product Depth (mm) :

Not Required(mm)

Product :

Precision Metal Film Resistors

Resistor Type :

FIXED RESISTOR

Features :

-

Product Length :

6.3

Power Rating :

0.25 W

Operating Temperature :

-65°C ~ 155°C

Case Style :

Epoxy

Product Diameter (mm) :

2.3(mm)

Composition :

Metal Film

Product Category :

Metal Film Resistors - Through Hole

Working Voltage :

250 V

Height - Seated (Max) :

-

Diameter :

2.3 mm

Termination Style :

Axial

Temperature Range @ Derated Power :

70 TO 155

Product Type :

Metal Film Resistors

Terminal Shape :

Wire

Package / Case :

Axial

Minimum Operating Temperature :

-65°C

Power (Watts) :

0.25W, 1/4W

Packing Method :

Ammo Pack

Mounting Style :

PCB Mount

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Product Height (mm) :

Not Required(mm)

Maximum Operating Temperature :

+155°C

Resistance Tolerance :

0.1

Military Standard :

Not Required

Tolerance :

0.1%

Failure Rate :

Not Required

Base Product Number :

YR1B

Flame-Proof Support :

No

Package Length :

6.3 mm

Reach Compliance Code :

Compliant

Length :

6.3 mm

Power Rating(s) :

0.25 (1/4)(W)

Lead Spacing (nom) :

Not Required(mm)

Brand :

TE Connectivity / Holsworthy

ECCN Code :

EAR99

Product Width :

-

Product Status :

Active

Qualification :

-

Additional Feature :

PRECISION

Operating Temp Range :

-65C to 155C

Type :

Thin Film

Rated Power Dissipation (P) :

0.25 W

Lead Diameter :

0.6 mm

RoHS :

Details

Series :

R

Tolerance (+ or -) :

0.1%
