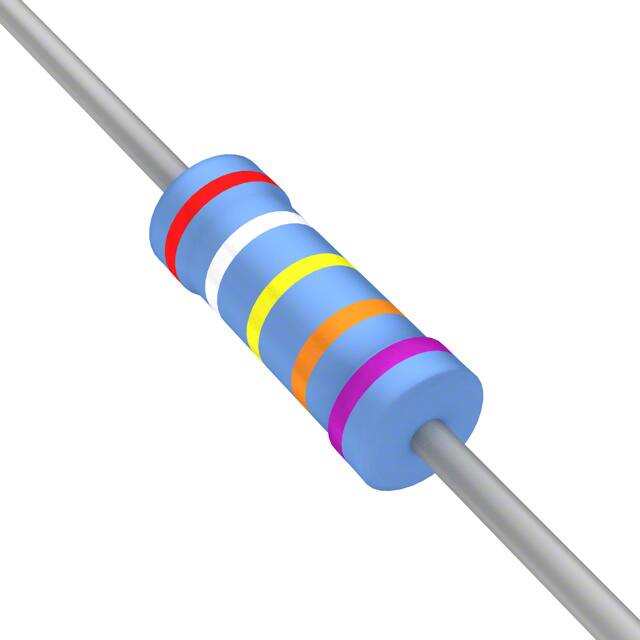

YR1B294KCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Length :

6.3 mm

Lifecycle Status :

Production (Last Updated: 6 days ago)

Series :

YR, Neohm

Subcategory :

Resistors

Mounting Feature :

THROUGH HOLE MOUNT

Additional Feature :

PRECISION

Radiation Hardening :

No

Supplier Device Package :

Axial

Surface Mount :

No

Resistance :

294 kOhms

Height - Seated (Max) :

--

Terminal Shape :

Wire

Number of Terminations :

2

Base Product Number :

YR1B

Max Power Dissipation :

250 mW

Max Operating Temperature :

155 °C

Category :

Synchronous Rectifier Controller

Number of Terminals :

2

Supplier Package :

SOIC

Package / Case :

Axial

Construction :

Tubular

ELV :

Compliant

Rated Power Dissipation (P) :

0.25 W

Number of Pins :

2

Operating Temperature :

-40 to 150 °C

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Mount :

Axial, Through Hole

Power Rating :

0.25W

Packaging :

Tape and Box (TB)

Maximum Operating Temperature :

+155°C

Voltage Rating (DC) :

500 V

Package :

Tape and Box (TB)

Manufacturer :

TE Connectivity

RoHS :

Details

Power (Watts) :

0.25W, 1/4W

Diameter :

2.3 mm

Package Length :

6.3 mm

Termination :

Axial

Min Operating Temperature :

-65 °C

Termination Style :

Axial

Voltage Rating :

250 V

Mounting Style :

PCB Mount

Resistor Type :

FIXED RESISTOR

Technology :

Metal Film

Pin Count :

8

Product Type :

Metal Film Resistors

Product Category :

Metal Film Resistors - Through Hole

Product :

Precision Metal Film Resistors

ECCN Code :

EAR99

Brand :

TE Connectivity / Holsworthy

REACH SVHC :

No SVHC

Lead Length :

25 mm

Package Shape :

TUBULAR PACKAGE

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Composition :

Metal Film

Mounting :

Surface Mount

Factory Lead Time :

10 Weeks, 6 Days

Temperature Coefficient :

±15ppm/°C

Number of Resistors :

1

Lead Diameter :

600 µm

Failure Rate :

--

Working Voltage :

250 V

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

-65°C

Packing Method :

Ammo Pack

Features :

--

Pbfree Code :

yes

Type :

Synchronous Rectifier Controller

Product Status :

Active

Tolerance :

±0.1%
