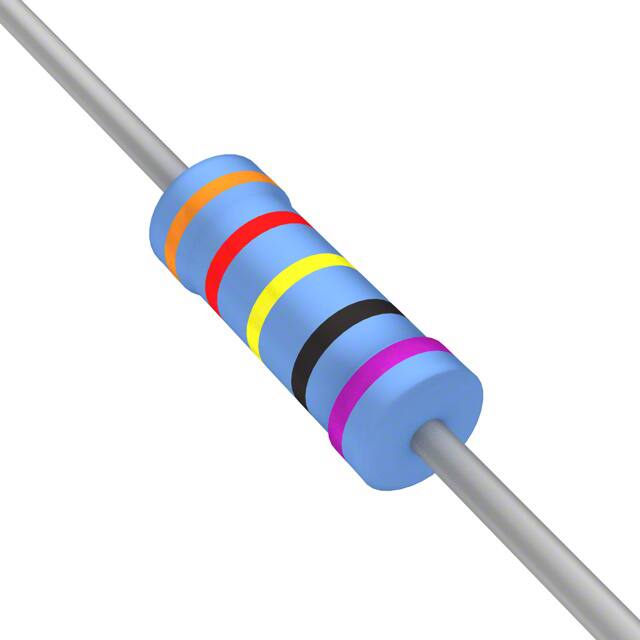

YR1B324RCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Tolerance :

0.1%

Factory Lead Time :

15 Weeks

Pbfree Code :

yes

Type :

Precision Resistor

Packaging :

Tape and Box (TB)

Surface Mount :

No

Diameter :

2.3 mm

Lead Diameter :

0.6 mm

Features :

--

Series :

YR, Neohm

Product :

Precision Metal Film Resistors

Length :

6.3 mm

Maximum Operating Temperature :

+155°C

Package / Case :

Axial

Number of Terminals :

2

ECCN Code :

EAR99

Base Product Number :

YR1B

Mounting Feature :

THROUGH HOLE MOUNT

Composition :

Metal Film

Failure Rate :

--

Resistance :

324 Ω

Power Rating :

0.25W

Height - Seated (Max) :

--

Minimum Operating Temperature :

-65°C

Rated Power Dissipation (P) :

0.25 W

Packing Method :

Ammo Pack

Voltage Rating :

250 V

Operating Temperature :

-65°C ~ 155°C

Additional Feature :

PRECISION

Working Voltage :

250 V

Product Type :

Metal Film Resistors

Package :

Tape and Box (TB)

Reach Compliance Code :

Compliant

Resistor Type :

FIXED RESISTOR

Mounting Style :

PCB Mount

Number of Terminations :

2

Package Length :

6.3 mm

Termination Style :

Axial

Construction :

Tubular

Supplier Device Package :

Axial

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Terminal Shape :

Wire

Power (Watts) :

0.25W, 1/4W

Product Status :

Active

Temperature Coefficient :

15 ppm/°C

Package Shape :

TUBULAR PACKAGE

Lead Length :

25 mm
