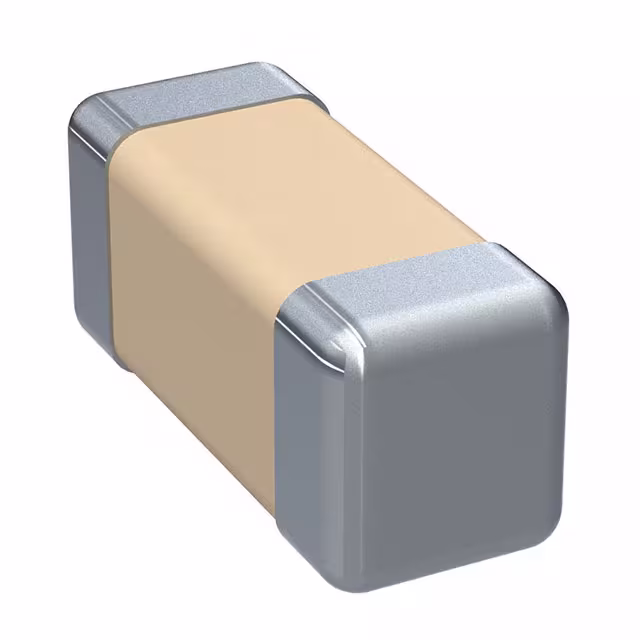

Z0201C800ASMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Product Length :

0.6 mm

Terminal Finish :

Matte Tin (Sn)

ECCN Code :

EAR99

Package / Case :

0201 (0603 Metric)

Filter Type :

Signal Line

Width :

0.8 mm

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Material :

Ferrite

Manufacturer :

KEMET Corporation

Impedance @ Frequency :

80 Ohms @ 100 MHz

JESD-609 Code :

e3

Base Product Number :

Z0201C

Number of Lines :

1

Product Status :

Obsolete

Package :

Digi-Reel?

Reach Compliance Code :

Compliant

Series :

Z-SMS

Physical Dimension :

L1.6XB0.8XH0.3 (mm)/L0.063XB0.031XH0.012 (inch)

Impedance :

80 Ohm

Construction :

Chip Bead

Case Code :

0201

Packing Method :

Tape and Reel

Rated Current :

0.2 A

Length :

1.6 mm

Current Rating (Max) :

200mA

Height (Max) :

0.013" (0.33mm)

Operating Temperature :

-55°C ~ 125°C

HTS Code :

8504.50.80.00

Factory Lead Time :

79 Weeks

Mounting Type :

Surface Mount

Ratings :

-

Output Impedance :

80 OHM Ω

Subcategory :

Other Filters

Impedance Tolerance :

± 25%

Number of Functions :

1

DC Resistance (DCR) (Max) :

400mOhm

Product Width :

0.3 mm

Height :

0.3 mm
