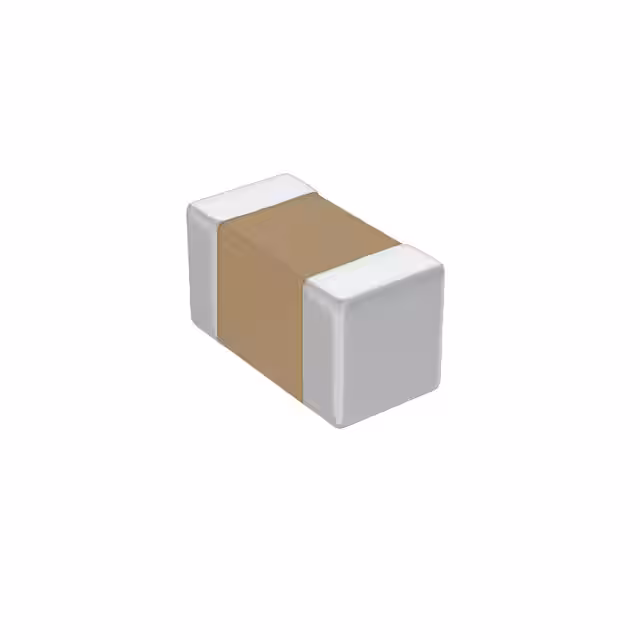

Z0402C121BSMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Terminal Finish :

Matte Tin (Sn)

Filter Type :

Signal Line

Tolerance :

25 %

Product :

Ferrite Chip Beads

Diameter :

-

Number of Lines :

1

Minimum Operating Temperature :

- 55 C

Resistance :

180 mΩ

Reach Compliance Code :

Compliant

Rated Current :

0.3 A

Depth :

12.7 mm

DC Resistance (DCR) :

250 mΩ

Mounting Type :

Surface Mount

Termination :

-

Maximum Operating Temperature :

+ 125 C

Packaging :

MouseReel

Series :

Z-SMS

Operating Temperature :

-55°C ~ 125°C

Physical Dimension :

L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)

Output Impedance :

120 OHM Ω

Material :

Ferrite

Current Rating (Max) :

300mA

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Max Operating Temperature :

125 °C

Termination Style :

SMD/SMT

Height (Max) :

0.022 (0.55mm)

Number of Functions :

1

Impedance @ Frequency :

120 Ohms @ 100 MHz

Case Code :

0402

Type :

Multilayer Ferrite Chip Bead

Current Rating :

300 mA

JESD-609 Code :

e3

Width :

0.5 mm

Packing Method :

Tape and Reel

Construction :

Chip Bead

Ratings :

-

RoHS :

Details

Height :

0.5 mm

HTS Code :

8504.50.80.00

Length :

1 mm

Product Status :

Obsolete

Package / Case :

0402 (1005 Metric)

Factory Lead Time :

79 Weeks

DC Resistance (DCR) (Max) :

250mOhm

Min Operating Temperature :

-55 °C

Size / Dimension :

0.039 L x 0.020 W (1.00mm x 0.50mm)

Base Product Number :

Z0402C

ECCN Code :

EAR99

Impedance :

120 Ohms

Test Frequency :

100 MHz

Max DC Current :

300 mA

Capacitance :

-
