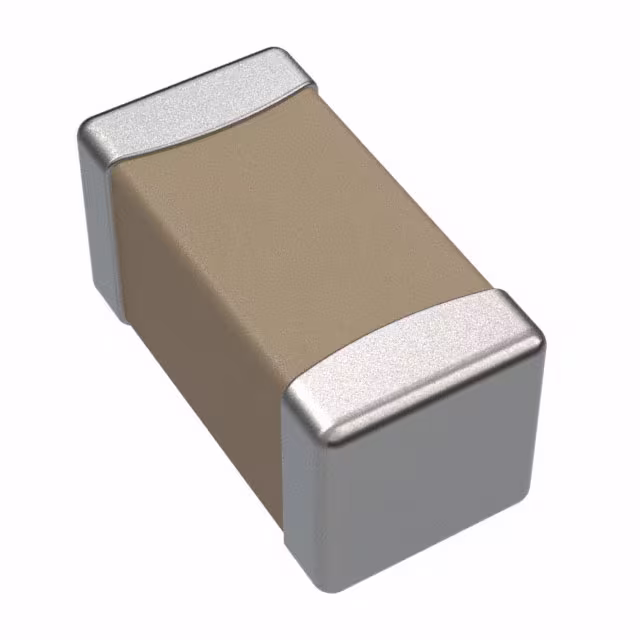

Z0603C241ASMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Construction :

Chip Bead

Diameter :

-

Rated Current :

0.4 A

Physical Dimension :

L1.6XB.8XH.8 (mm)/L.063XB.0315XH.0315 (inch)

Material :

Ferrite

Manufacturer :

KEMET

Termination :

-

Minimum Operating Temperature :

- 55 C

Factory Lead Time :

79 Weeks

Height :

0.8 mm

Impedance @ Frequency :

240 Ohms @ 100 MHz

Current Rating (Max) :

400mA

Product :

Ferrite Chip Beads

RoHS :

Details

Mounting Type :

Surface Mount

Packaging :

MouseReel

Resistance :

250 mΩ

Test Frequency :

100 MHz

Brand :

KEMET

Tolerance :

25 %

Number of Lines :

1

Height (Max) :

0.037" (0.95mm)

Product Length :

1.6 mm

Reach Compliance Code :

Compliant

Filter Type :

Signal Line

Width :

0.8 mm

DC Resistance (DCR) (Max) :

250mOhm

Package :

Digi-Reel?

Terminal Finish :

Matte Tin (Sn)

Operating Temperature :

-55°C ~ 125°C

Subcategory :

Ferrites

Type :

Multilayer Ferrite Chip Bead

Product Type :

Ferrite Beads

Series :

Z-SMS

Capacitance :

-

Product Width :

0.8 mm

Ratings :

-

Product Category :

Ferrite Beads

Termination Style :

SMD/SMT

Maximum Operating Temperature :

+ 125 C

Package / Case :

0603 (1608 Metric)

Case Code :

0603

Product Status :

Obsolete

JESD-609 Code :

e3

Base Product Number :

Z0603C

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Impedance Tolerance :

± 25%

Length :

1.6 mm

Impedance :

240 Ohm

Packing Method :

TR
