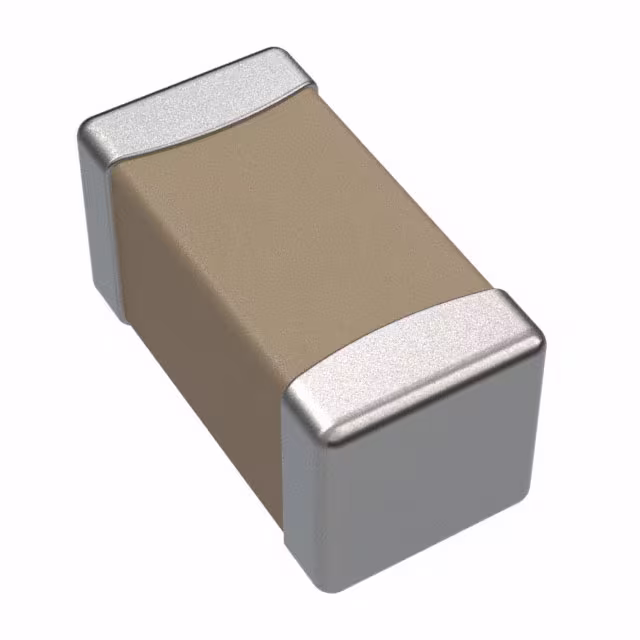

Z0603C560CSMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Tolerance :

25%

Number of Lines :

1

Case Size :

0603

Resistance :

300 mΩ

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

RoHS :

Compliant

Termination :

SMD/SMT

Automotive :

No

Impedance (Ohm) :

56

Width :

800 µm

Test Frequency (Hz) :

100m

Manufacturer :

KEMET Corporation

Mounting :

Surface Mount

Mounting Type :

Surface Mount

Package / Case :

0603 (1608 Metric)

Minimum Operating Temperature (°C) :

-55

Maximum DC Current (A) :

0.4

Max DC Current :

400 mA

HTS :

8504.50.80.00

Series :

Z-SMS

JESD-609 Code :

e3

Physical Dimension :

L1.6XB.8XH.8 (mm)/L.063XB.0315XH.0315 (inch)

Maximum DC Resistance (Ohm) :

0.3

Product Height (mm) :

0.95

Material :

Ferrite

Rated Current :

0.4 A

Filter Type :

Signal Line

Maximum Operating Temperature (°C) :

125

Product Status :

Obsolete

EU RoHS :

Compliant

Length :

1.6 mm

Test Frequency :

100 MHz

Product Length (mm) :

1.75

PPAP :

No

Impedance @ Frequency :

56 Ohms @ 100 MHz

Size / Dimension :

0.063 L x 0.031 W (1.60mm x 0.80mm)

DC Resistance (DCR) :

300 mΩ

Terminal Finish :

Matte Tin (Sn)

Height :

800 µm

Product Depth (mm) :

0.95

Operating Temperature :

-55°C ~ 125°C

Height (Max) :

0.037 (0.95mm)

Type :

Multi-Layer

Factory Lead Time :

79 Weeks

Max Operating Temperature :

125 °C

Construction :

Chip Bead

Packaging :

Tape and Reel

Min Operating Temperature :

-55 °C

Packing Method :

TR

Base Product Number :

Z0603C

Reach Compliance Code :

Compliant

Impedance :

56 Ω

Ratings :

-

Case Code :

0603

ECCN (US) :

EAR99

Subcategory :

Other Filters

DC Resistance (DCR) (Max) :

300mOhm

Current Rating (Max) :

400mA
