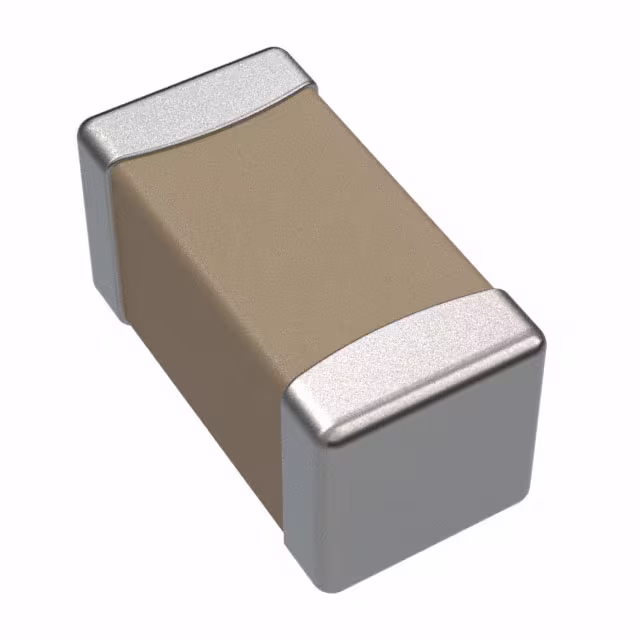

Z0603C600ASMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Product Length :

1.6 mm

Packaging :

MouseReel

Case Code :

0603

Product :

Ferrite Chip Beads

Impedance @ Frequency :

60 Ohms @ 100 MHz

Termination Style :

SMD/SMT

Width :

0.8 mm

Rated Current :

0.8 A

Ratings :

-

Construction :

Chip Bead

Maximum Operating Temperature :

+ 125 C

Operating Temperature :

-55°C ~ 125°C

Impedance Tolerance :

± 25%

RoHS :

Details

Diameter :

-

Impedance :

60 Ohms

Material :

Ferrite

Series :

Z-SMS

Filter Type :

Signal Line

Type :

Multilayer Ferrite Chip Bead

Test Frequency :

100 MHz

Size / Dimension :

0.063 L x 0.031 W (1.60mm x 0.80mm)

Height :

0.8 mm

Mounting Type :

Surface Mount

DC Resistance (DCR) (Max) :

100MOhm

Minimum Operating Temperature :

- 55 C

Length :

1.6 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Packing Method :

TR

Number of Lines :

1

Product Status :

Obsolete

Product Width :

0.8 mm

Reach Compliance Code :

Compliant

Physical Dimension :

L1.6XB.8XH.8 (mm)/L.063XB.0315XH.0315 (inch)

Termination :

-

Capacitance :

-

Terminal Finish :

Matte Tin (Sn)

Package / Case :

0603 (1608 Metric)

Base Product Number :

Z0603C

Factory Lead Time :

79 Weeks

Height (Max) :

0.037 (0.95mm)

Current Rating (Max) :

800mA

Tolerance :

25 %

JESD-609 Code :

e3
