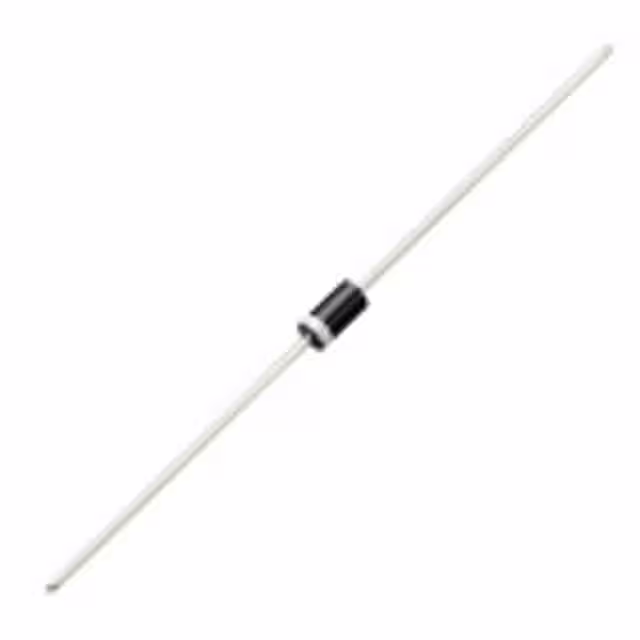

Z100B

Manufacturer :

Rectron USA

Product Category :

Diodes - Zener - Single

Length :

5.2 mm

Terminal Form :

Wire

Reach Compliance Code :

not_compliant

Product Category :

Zener Diodes

Number of Terminals :

2

Mounting Style :

Through Hole

Terminal Position :

Axial

Height :

2.7 mm

Impedance :

350 Ω

Qualification Status :

Not Qualified

Brand :

Rectron

Power Dissipation :

1 W

Package Shape :

Round

Test Current :

2.5 mA

JESD-30 Code :

O-PALF-W2

Min Operating Temperature :

-55 °C

JESD-609 Code :

e3

Technology :

Zener

Voltage Tol-Max :

20%

ECCN Code :

EAR99

Product Type :

Zener Diodes

Diode Type :

ZENER DIODE

Power Dissipation-Max :

1 W

Termination Style :

Axial

Voltage Tolerance :

20 %

Zener Voltage :

100 V

Max Operating Temperature :

150 °C

Element Configuration :

Single

Diode Element Material :

SILICON

Maximum Operating Temperature :

+ 150 C

Case Connection :

Isolated

Configuration :

Single

Terminal Finish :

Matte Tin (Sn)

Max Reverse Leakage Current :

500 nA

RoHS :

Non-Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Working Test Current :

2.5 mA

Subcategory :

Diodes and Rectifiers

Additional Feature :

High Reliability

Surface Mount :

No

Pin Count :

2

Series :

Z1

Manufacturer :

Rectron

JEDEC-95 Code :

DO-41

Width :

2.7 mm

Package / Case :

DO-41

Packaging :

Bulk

Number of Elements :

1

Minimum Operating Temperature :

- 55 C

Polarity :

Unidirectional

HTS Code :

8541.10.00.50

Zener Current :

1 A
