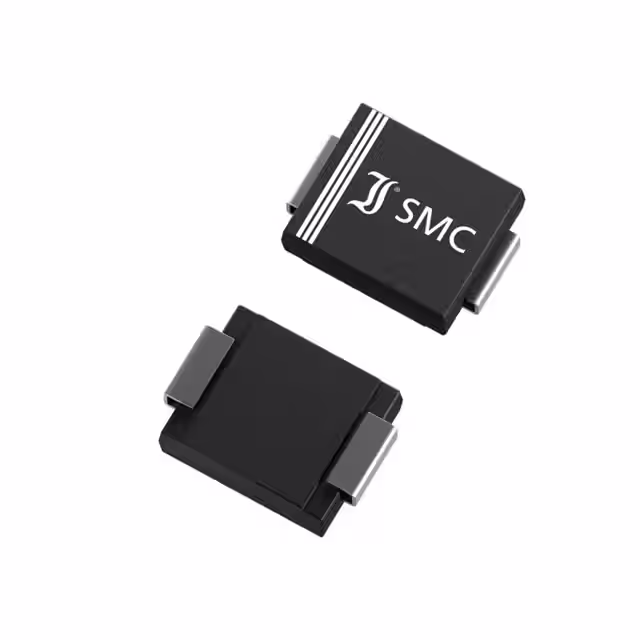

Z3SMC100

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Zener - Single

Number of Elements :

1

Qualification Status :

Not Qualified

Diode Element Material :

SILICON

Technology :

Zener

HTS Code :

8541.10.00.50

Working Test Current :

5 mA

Configuration :

Single

Reach Compliance Code :

Compliant

Dynamic Impedance-Max :

150 Ω

Subcategory :

Voltage Reference Diodes

Terminal Position :

Dual

Voltage Tol-Max :

5%

Diode Type :

ZENER DIODE

Peak Reflow Temperature (Cel) :

260

Terminal Form :

C BEND

Polarity :

Unidirectional

Package Shape :

RECTANGULAR

JESD-30 Code :

R-PDSO-C2

Manufacturer :

Cutler Hammer, Div of Eaton Corp

Number of Terminals :

2

Pin Count :

2

Power Dissipation-Max :

3 W

ECCN Code :

EAR99

Surface Mount :

yes

JEDEC-95 Code :

DO-214AB
