DLW5BTM101SQ2L Low profile (h=2.5mm) chip common mode choke coil. Suitable for noise suppression at DC power lines.
This post will introduce the details of DLW5BTM101SQ2L for you, including DLW5BTM101SQ2L data sheet, DLW5BTM101SQ2L pinout, DLW5BTM101SQ2L PDF
DLW5BTM101SQ2L Description
The DLW5BTM101SQ2L is a compact surface-mount chip inductor designed for modern electronic devices. It offers excellent electrical performance with a high-quality ferrite core for improved inductance and efficiency. It has low DC resistance, enabling efficient power transfer, and can handle high current demands. It is compatible with surface-mount technology (SMT) processes and exhibits excellent solderability for easy integration into electronic assemblies.
DLW5BTM101SQ2L Equivalent Circuit

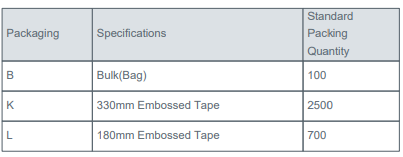

DLW5BTM101SQ2L Package
DLW5BTM101SQ2L CAD-Model
Symbol
Footprint
3D-MODEL
DLW5BTM101SQ2L Alternatives
DLW5BTM101SQ2L Applications
Noise suppression for power line
1. Power line equipment
-DC-DC converters
-Battery chargers
2. Portable equipment
-PDAs (Personal Digital Assistants)
-Note PCs
-Printers
DLW5BTM101SQ2L Features
1. Low profile (h=2.5mm)
2. Small size (5.0x5.0mm) and high rated current
(1.5 to 6A)
3. High common mode Impedance
(max. 1400 ohm, at 100MHz)
DLW5BTM101SQ2L How does it work?
The DLW5BTM101SQ2L chip inductor operates based on the principles of electromagnetic induction. It is designed to store energy in the form of a magnetic field when an electric current passes through it.
When a current flows through the DLW5BTM101SQ2L, the conductive coil wrapped around the core generates a magnetic field. The ferrite core used in the inductor enhances the magnetic properties, allowing for improved inductance.
The inductor's inductance is a measure of its ability to store magnetic energy. It is determined by factors such as the number of turns in the coil, the core material, and the physical dimensions of the inductor.
As the current passing through the inductor changes, the magnetic field also changes. This change in magnetic field induces a voltage across the inductor, which opposes the change in current flow. This property of inductors is known as inductance-induced voltage or back EMF (electromotive force).
The DLW5BTM101SQ2L's compact size and optimized design allow it to efficiently store and release energy in the magnetic field. It offers low DC resistance, minimizing power losses and maximizing the efficiency of power transfer.
The inductor's high saturation current rating indicates its ability to handle high current demands without saturating the core, ensuring reliable performance in applications with varying current levels.
Specifications
- Manufacturer :
- Murata Electronics
- Product Category :
- Common Mode Chokes
- Composition :
- Wirewound
- DC Resistance (DCR) (Max) :
- 13mOhm
- ECCN Code :
- EAR99
- Factory Lead Time :
- 8 Weeks
- Filter Type :
- Power, Signal Line
- Height :
- 2.4892mm
- HTS Code :
- 8504.50.80.00
- Impedance :
- 100Ohm
- Impedance @ Frequency :
- 100Ohm @ 100MHz
- JESD-609 Code :
- e2
- Lead Free :
- Lead Free
- Length :
- 5mm
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Max DC Current :
- 6A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Number of Functions :
- 2
- Number of Lines :
- 2
- Operating Temperature :
- -40°C~85°C
- Package / Case :
- Horizontal, 6 PC Pad
- Packaging :
- Tape and Reel (TR)
- Packing Method :
- Tape and Reel
- Part Status :
- Active
- Pbfree Code :
- yes
- Rated Current :
- 6A
- Resistance :
- 100Ohm
- RoHS Status :
- ROHS3 Compliant
- Series :
- DLW5B
- Shielding :
- Unshielded
- Size / Dimension :
- 0.197Lx0.197W 5.00mmx5.00mm
- Terminal Finish :
- Tin/Copper (Sn/Cu)
- Termination :
- SMD/SMT
- Test Frequency :
- 100MHz
- Tolerance :
- 40%
- Voltage - Rated DC :
- 50V
- Weight :
- 299.994654mg
- Width :
- 5mm
Datasheets
- Datasheets
- DLW5BTM101SQ2L
- Share this post
-
Frequently Asked Questions
What is the use of DLW5BTM101SQ2L?
DLW5BTM101SQ2L is a Low profile (h=2.5mm) chip common mode choke coil. Suitable for noise suppression at DC power lines.
