DS18B20+ Digital Thermometer: Unique 1-Wire Interface
yunying Release time：2023-09-15 Page View：286

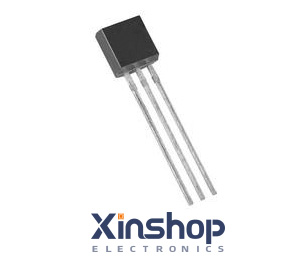

DS18B20+ SENSOR DIGITAL -55C-125C TO92-3

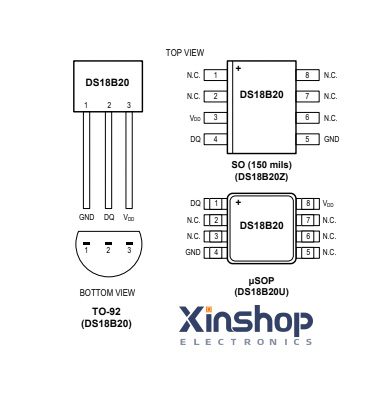

DS18B20+ Pinout
DS18B20+ CAD Model
Symbol
Footprint
3D-Model
DS18B20+ Overview
DS18B20+ These sensors are packaged in bulk to assure safety. To prevent device damage, analog sensors should be packaged in TO-226-3, TO-92-3 (TO-226AA) packaging. This sensor has three pins to ensure optimal operation. This electronic component has three terminations. The analog sensors may supply 1.5mA current during operation. This sensor should provide a maximum voltage of 5.5V to a DC circuit. Although, in a DC circuit, this magnetic switch may provide a minimum voltage of 3V. This sensor requires 1mA of current to function. It is advised that the sensor's current output be set to 4mA for maximum performance.
DS18B20+ Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Bulk Package
Operating Temperature: -55°C~125°C
Supply Voltage: 3V~5.5V
3 Pins
Local Sensing Temperature: -55°C~125°C
3 Terminations
Highest (Lowest) Accuracy: ±0.5°C (±2°C)
Sensor Type: Digital, Local
DS18B20+ Applications
There are a lot of Digital Sensors applications.
HVAC
| Disk Drives
| Automotive
| Portable Medical Instruments
| Industrial
|
Computers
| Battery Management
| Printers
| Power Supply Modules
| Automatic doors/ elevators
|

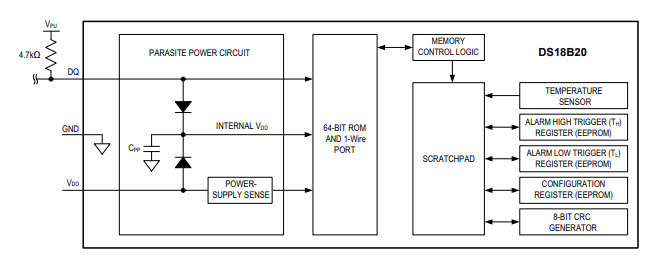

DS18B20+ Block Diagram
DS18B20+ Package
Bulk Package
DS18B20+ datasheet
Please swipe to the lasst two part for Downloading DS18B20+ datasheets, specifications and manufacturer documentation.
Specifications
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Temperature Sensors - Analog and Digital Output
- Accuracy :
- +/- 0.5 C
- Accuracy - Highest (Lowest) :
- ±0.5°C (±2°C)
- Base Product Number :
- DS18B20
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish - Mating :
- Gold
- Contact Material :
- COPPER ALLOY
- Fastening Type :
- Threaded
- Features :
- Output Switch, Programmable Limit, Programmable Resolution
- Mfr :
- Glenair
- Mounting Type :
- Through Hole
- MSL :
- MSL 1 - Unlimited
- Operating Temperature :
- -65°C ~ 175°C
- Orientation :
- B
- Output Type :
- 1-Wire®
- Package :
- Retail Package
- Package / Case :
- TO-226-3, TO-92-3 (TO-226AA)
- Primary Material :
- Metal
- Product :
- Thermometers and Thermostats
- Product Status :
- Active
- Resolution :
- 12 b
- Sensing Temperature - Local :
- -55°C ~ 125°C
- Sensing Temperature - Remote :
- -
- Sensor Type :
- Digital, Local
- Series :
- 806
- Shell Size - Insert :
- 16-7
- Supplier Device Package :
- TO-92-3
- SVHC :
- No SVHC (10-Jun-2022)
- Test Condition :
- -10°C ~ 85°C (-55°C ~ 125°C)
- Voltage - Supply :
- 3V ~ 5.5V
Datasheets
- Datasheets
- DS18B20+
Product comparison
-
ImagePart NumberManufacturerToleranceVoltage - RatedProduct StatusPackage / CaseProduct CategoryView Compare
-
-
-
Active
TO-226-3, TO-92-3 (TO-226AA)
Temperature Sensors - Analog and Digital Output
-
-
-
-
TO-226-3, TO-92-3 (TO-226AA)
Temperature Sensors - Analog and Digital Output
-
-
-
Active
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Temperature Sensors - Analog and Digital Output
- Share this post
-
Frequently Asked Questions
What exactly is DS18B20+?
The DS18B20+ is a programmable resolution 1-wire digital thermometer in 3 pin TO-92 package. This digital thermometer provides 9bit to 12bit celsius temperature measurements and has an alarm function with non-volatile user programmable upper and lower trigger points.
How to Apply DS18B20+
https://www.youtube.com/watch?v=Y1__vmkr8-g
Where should the DS18B20+IC be used?
This sensor is extensively used to calculate temperature within rigid environments which includes mines, chemical solutions, otherwise soil, etc. This sensor is used to measure the liquid temperature. We can use it in the thermostat controls system. It can be used in industries as a temperature measuring device.
