Dear friends, Two such components that are often compared are the IRFZ44N and IRF3205. These components belong to the family of power MOSFETs and are widely used in electronic circuits for various purposes. This article aims to provide a detailed comparison of IRFZ44N and IRF3205, covering their pinout, CAD model, test circuit, package, applications, as well as highlighting their similarities and differences.

IRFZ44N is a power MOSFET designed for high-speed switching applications. It is manufactured by a reputable semiconductor company and offers low on-resistance and high current-handling capabilities. The IRFZ44N is typically used in power supplies, motor control circuits, DC-DC converters, and other electronic systems that require efficient power management.

Similar to the IRFZ44N, the IRF3205 is also a power MOSFET widely used in electronic circuits. It is known for its low on-resistance, high current-handling capacity, and robustness. The IRF3205 is commonly employed in applications such as motor control, power inverters, uninterruptible power supplies (UPS), and automotive systems.

Advanced Process Technology

Ultra L ow On-R esistance

Dynamic dv/dt Rating

175°C Operating Temperature

Fast Switching

Fully Avalanche Rated

L ead-Free

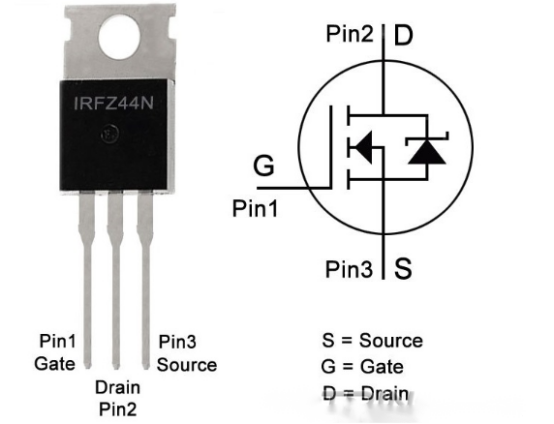

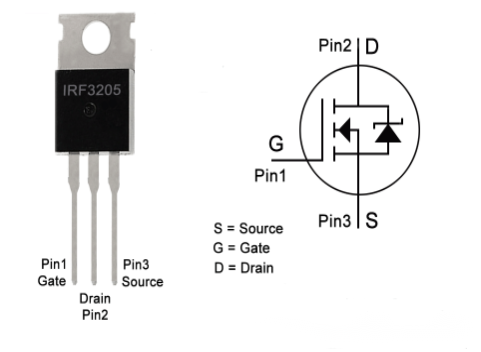

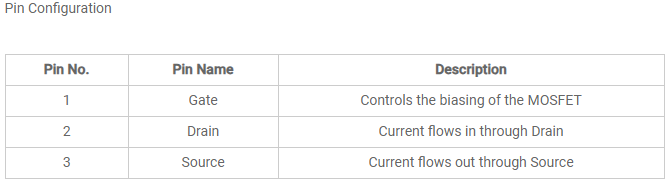

The pinout configuration of a component is crucial for proper integration into a circuit. While the specific pinout details may vary depending on the manufacturer, both IRFZ44N and IRF3205 generally follow the standard three-pin configuration commonly found in power MOSFETs. These pins are the gate (G), drain (D), and source (S). It is important to consult the datasheets provided by the manufacturers for the precise pinout details of each component.

 IRFZ44N

IRF3205

Symbol

Footprint

3D-Model

To evaluate the performance of IRFZ44N and IRF3205, it is essential to understand their behavior in specific test circuits. Test circuits provided by the manufacturers offer insights into the components' characteristics, such as switching times, voltage and current ratings, and thermal performance. Engineers can refer to these test circuits to assess how IRFZ44N and IRF3205 perform under different operating conditions.

The package style and dimensions of electronic components play a vital role in their physical integration onto circuit boards. Both IRFZ44N and IRF3205 are available in industry-standard packages, such as TO-220 and D2PAK. These packages offer good thermal dissipation and mechanical stability, making them suitable for a wide range of applications. It is important to consider the package type and dimensions when designing circuit boards to ensure proper mounting and heat dissipation.

IRFZ44N and IRF3205 find applications in various electronic systems due to their desirable characteristics. Some common applications for both components include:

1. Power supplies: IRFZ44N and IRF3205 can be used in switch-mode power supplies to regulate voltage and efficiently manage power distribution.

2. Motor control: Both components are suitable for motor control circuits, allowing precise control over motor speed and direction.

3. DC-DC converters: IRFZ44N and IRF3205 enable efficient power conversion in DC-DC converter circuits, minimizing energy losses.

4. Power inverters: These components are utilized in power inverter circuits to convert DC power to AC power, commonly used in renewable energy systems and UPS.

5. Automotive systems: IRFZ44N and IRF3205 are employed in automotive applications such as engine control units (ECUs), headlight control, and battery management systems.

Although IRFZ44N and IRF3205 share similar characteristics and applications, there are some notable differences between them. These differences may include variations in electrical parameters such as on-resistance, gate charge, and voltage ratings. It is crucial to refer to the respective datasheets of IRFZ44N and IRF3205 to understand their unique specifications and select the component that best suits the specific requirements of a given application.

In summary, IRFZ44N and IRF3205 are both power MOSFETs widely used in electronic circuits. They offer low on-resistance, high current-handling capacity, and find applications in power supplies, motor control circuits, DC-DC converters, and more. Both components have similar pinout configurations, CAD models, and package options. Engineers can refer to test circuits provided by the manufacturers to assess their performance under different operating conditions. While they share similarities, IRFZ44N and IRF3205 may have variations in electrical parameters, making it important to consult their respective datasheets for precise specifications. By understanding the capabilities and differences between IRFZ44N and IRF3205, engineers can make informed decisions when selecting the appropriate component for their electronic designs.
