Hello guys this is A LM7805 Voltage Regulator ic Tutorial. A widely used voltage regulator is the LM7805 Voltage Regulator IC. More information on the LM7805 will be revealed by this article.Semiconductors, Capacitors, Resistors, and ICs are all available in a wide variety. RFQ, welcome!
LM7805 Pinout
LM7805 Pinout

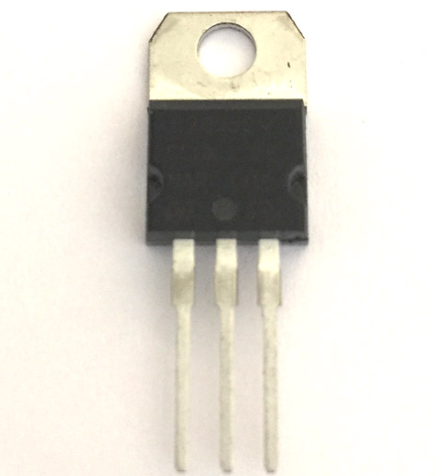

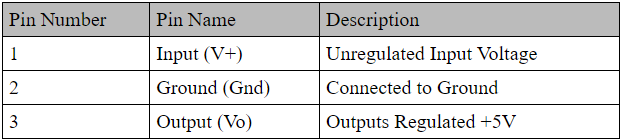

lm7805 pin configuration
LM7805 CAD Model
Symbol
LM7805 Symbol
Footprint
LM7805 Footprint
3D Model
LM7805 3D Model
LM7805 Description
An LM7805 Voltage Regulator is a voltage regulator that outputs +5 volts that finds its application in most electronics projects. In electronic circuits, voltage regulators are very common. For a variable input voltage, they offer a constant output voltage. In our situation, the LM7805 IC is a well-known regulator IC that is used in a wide range of projects. The designation LM7805 has two meanings: "78" indicates that it is a positive voltage regulator, and "05" indicates that it outputs 5V. As a result, our LM7805 will output a value of +5V.
This IC has a maximum output current of 1.5A. However, because the IC loses a lot of heat, a heat sink is recommended for projects that use a lot of currents. If the input voltage is 12V and you are consuming 1A, then (12-5) * 1 = 7W is the result. These 7 watts will be converted to heat and dissipated.
LM7805 Feature
• Output Current in Excess of 1.0 A
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Output Voltage Offered in 1.5%, 2% and 4% Tolerance
• Available in Surface Mount D2PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q100 Qualified and PPAP Capable
LM7805 Price
The price of an LM7805 voltage regulator can vary depending on various factors such as the manufacturer,
package type, and quantity purchased. Generally, the price of an LM7805 voltage regulator ranges from
$0.20 to $1.50 per unit. However, it is important to note that prices may vary based on the supplier, location,
and market conditions. It is recommended to check with electronic component distributors or retailers for the
most up-to-date pricing information.
Application
Constant +5V output regulator to power microcontrollers and sensors in most of the projects
Adjustable Output Regulator
Current Limiter for certain applications
Regulated Dual Supply
Output Polarity-Reversal-Protection Circuit
LM7805 Equivalent
LM7805 Package
![NXL3)P7]$9%Z7P(R1~Y`DRM](https://www.xinshop.com/upload/image/content/20231005/8a924a4f6a8c7987325e12c6ade89cdc.png "8a924a4f6a8c7987325e12c6ade89cdc.png")
Please swipe to rthe end of the article to DOWNLOAD LM7805 datasheets and manufacturer documentation.
LM7805 Circuit

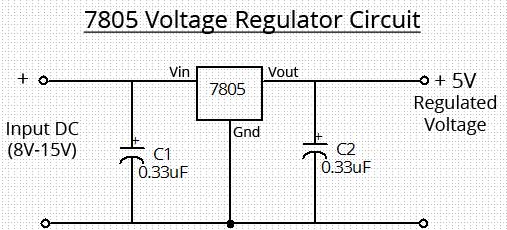

LM7805 voltage regulator circuit
How does lm7805 voltage regulator work?
The LM7805 voltage regulator takes an unregulated voltage and turns it into a steady 5 volt voltage.
It does this by using a feedback loop. The feedback loop has three parts:
An error amplifier
A voltage reference
A pass transistor
The error amplifier checks the output voltage against the voltage reference. If the output voltage is too low, the error amplifier tells the pass transistor to let more current flow. This increases the output voltage.
If the output voltage is too high, the error amplifier tells the pass transistor to let less current flow. This decreases the output voltage.
The LM7805 also has protection features to keep it from being damaged. These features include:
Overcurrent protection
Thermal shutdown
Short-circuit protection
In summary:
The LM7805 voltage regulator takes an unregulated voltage and turns it into a steady 5 volt voltage. It does this by using a feedback loop to check the output voltage and adjust the current flow accordingly. The LM7805 also has protection features to keep it from being damaged.
