Manufacturer :

NXP Semiconductors

Product Category :

Special Purpose Regulators

Adjustable Threshold :

yes

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Applications :

Converter, i.MX6

Base Part Number :

MMPF0100

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Height Seated (Max) :

0.9mm

HTS Code :

8542.39.00.01

JESD-30 Code :

S-XQCC-N56

Length :

8mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Mounting Type :

Surface Mount

Number of Channels :

14

Number of Functions :

1

Number of Outputs :

12

Number of Terminations :

56

Operating Temperature :

-40°C~85°C TA

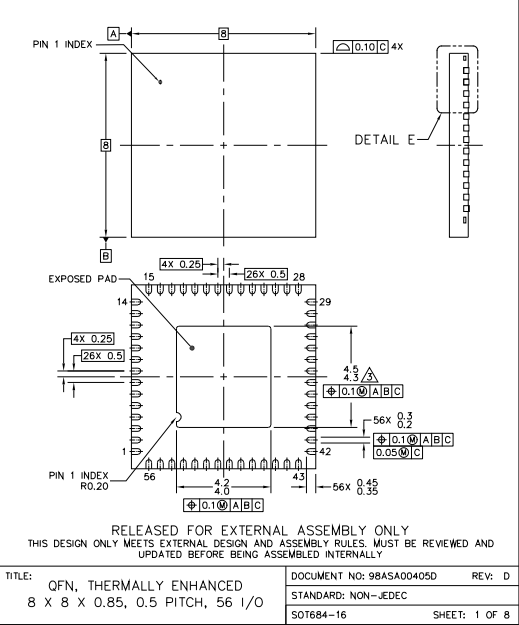

Package / Case :

56-VFQFN Exposed Pad

Packaging :

Tray

Part Status :

Active

Peak Reflow Temperature (Cel) :

260

Published :

2004

RoHS Status :

ROHS3 Compliant

Supply Voltage :

3.6V

Supply Voltage-Max (Vsup) :

4.5V

Supply Voltage-Min (Vsup) :

2.8V

Surface Mount :

yes

Terminal Form :

NO LEAD

Terminal Pitch :

0.5mm

Terminal Position :

QUAD

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Input :

2.8V~4.5V

Voltage - Output :

Multiple

Width :

8mm
