NSVMMBT6429LT1G:Overview, Pinout, CAD Model
yunying Release time：2023-11-20 Page View：147

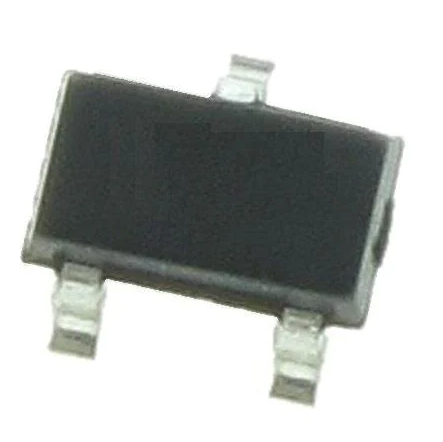

Bipolar (BJT) Transistor NPN 45 V 200 mA 700MHz 300 mW Surface Mount SOT-23-3 (TO-236)
Introduction
The NSVMMBT6429LT1G is a highly versatile and widely used electronic component that offers advanced features and reliable performance. This article aims to provide a comprehensive overview of the NSVMMBT6429LT1G, including its description, CAD model, features, applications, alternatives, dimensions, datasheet PDF, and a product comparison.
NSVMMBT6429LT1G Description
The NSVMMBT6429LT1G is a specific model number for a semiconductor device. While the exact details of the product may vary depending on the manufacturer, it is typically a small signal NPN transistor. This transistor is designed to handle low current and voltage levels, making it suitable for various electronic applications.
NSVMMBT6429LT1G CAD Model:
Symbol
Footprint

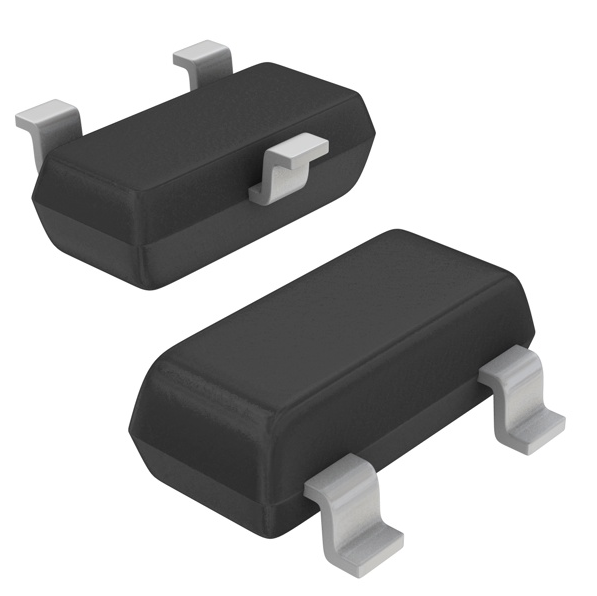

3D-Model
NSVMMBT6429LT1G Features
The NSVMMBT6429LT1G boasts several notable features, which may include:
1. Low power consumption: The transistor is designed to operate efficiently with minimal power requirements, making it suitable for battery-powered devices or applications where energy efficiency is crucial.
2. High switching speed: The NSVMMBT6429LT1G offers fast switching characteristics, allowing for rapid on/off transitions, which is beneficial in applications requiring quick response times.
3. Small form factor: With its compact size, the NSVMMBT6429LT1G can be easily integrated into space-constrained designs, making it ideal for portable electronics or miniaturized devices.
4. Low noise operation: The transistor exhibits low noise levels, ensuring minimal interference and improved signal integrity in sensitive electronic circuits.
• NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
NSVMMBT6429LT1G Applications
The NSVMMBT6429LT1G finds applications in various fields, including but not limited to:
1. Consumer electronics: It is commonly used in smartphones, tablets, digital cameras, and portable media players, where it plays a crucial role in amplification, switching, and signal processing.
2. Automotive electronics: The NSVMMBT6429LT1G can be found in automotive systems, such as engine control units (ECUs), lighting controls, and infotainment systems, contributing to the efficient operation and reliable performance of these systems.
3. Industrial automation: It is utilized in industrial control systems, motor drives, and power management applications, enabling precise control, efficient energy usage, and reliable operation in industrial settings.
4. Communication devices: The transistor is employed in various communication devices, including routers, modems, and wireless transceivers, ensuring reliable signal transmission and reception.
*AV Decoder
*Portable Audio Dock
*Home theater and Blu-ray player
*PC embedded
*Portable audio player/recorder (MP3)
*PDA, or personal digital assistant
NSVMMBT6429LT1G Alternatives

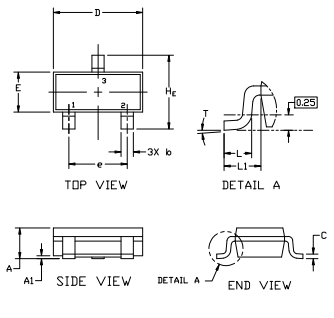

NSVMMBT6429LT1G Dimensions

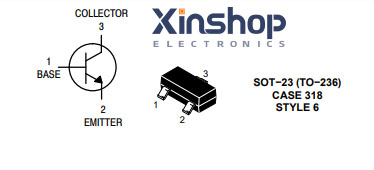

NSVMMBT6429LT1G Pinout
NSVMMBT6429LT1G Marking Diagram
Specifications
- Manufacturer :
- onsemi
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Collector Base Voltage (VCBO) :
- 55V
- Collector Emitter Breakdown Voltage :
- 45V
- Collector Emitter Voltage (VCEO) :
- 45V
- Configuration :
- Single
- Current - Collector (Ic) (Max) :
- 200mA
- Current - Collector Cutoff (Max) :
- 100nA
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 500 @ 100μA 5V
- ECCN Code :
- EAR99
- Emitter Base Voltage (VEBO) :
- 6V
- Factory Lead Time :
- 2 Weeks
- Frequency :
- 700MHz
- Halogen Free :
- Halogen Free
- JESD-609 Code :
- e3
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Collector Current :
- 200mA
- Max Power Dissipation :
- 300mW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Number of Elements :
- 1
- Number of Pins :
- 3
- Operating Temperature :
- -55°C~150°C TJ
- Package / Case :
- TO-236-3, SC-59, SOT-23-3
- Packaging :
- Tape and Reel (TR)
- Part Status :
- Active
- Pbfree Code :
- yes
- Pin Count :
- 3
- Polarity/Channel Type :
- NPN
- Power Dissipation :
- 300mW
- Published :
- 2009
- Radiation Hardening :
- No
- RoHS Status :
- ROHS3 Compliant
- Surface Mount :
- yes
- Terminal Finish :
- Tin (Sn)
- Transistor Type :
- NPN
- Transition Frequency :
- 100MHz
- Vce Saturation (Max) @ Ib, Ic :
- 600mV @ 5mA, 100mA
Datasheets
- Datasheets
- NSVMMBT6429LT1G
