SG3525 PWM Controller Datasheet,Price|SG3525 VS TL494
yunying Release time：2023-09-28 Page View：312
16 Terminals 8V~35V 16-Pin SG3525A DC to DC converter IC SWITCHING CONTROLLER 2 Outputs 100Hz~400kHz Transistor Driver
Hi guys, today let's Exploring the SG3525 Pulse Width Modulation Controller, the content will include SG3525 Datasheet, Pinout, 3D Model, SG3525 Price, Advantages, Disadvantages, SG3525 VS TL494 and
SG3525 Overview
The SG3525 IC is a pulse width modulation (PWM) controller integrated circuit (IC) that provides precise control over the duty cycle of a signal. It finds applications in various power electronics systems such as switch-mode power supplies, inverters, and motor speed control.
Wide supply voltage range: typically 8V to 35V
Adjustable frequency range: 100Hz to 500kHz
Maximum duty cycle: 50%
Output current capability: up to 200mA
Error amplifier with adjustable gain
Dead-time control for push-pull applications
SG3525 Datasheet & SG3525 circuit diagram
Swipe to the end of the article to get SG3525 Datasheet, SG3525 Specification and product comparison
sg3525 inverter circuit diagram
SG3525 Pinout
The SG3525 IC features a 16-pin dual in-line package (DIP) or surface mount package (SMD). The pinout configuration typically includes:
Power supply pins (VCC and GND)
Error amplifier inputs (inverting and non-inverting)
Oscillator timing components (RT and CT)
PWM outputs (OUTA and OUTB)
Feedback input (FB)
Dead-time control (DT)
Shutdown and soft-start functions (SS and SD)
Understanding the pinout is crucial for proper connections and circuit design.
SG3525 3D Model
SG3525 Symbol
SG3525 Footprint
SG3525 3d-model
SG3525 Price
The price of SG3525 IC module varies depending on factors such as the supplier, quantity ordered, and market conditions. Here are some approximate price ranges:
Single Unit: $0.50 - $1.50
Small Quantities (10-100 units): $0.40 - $1.00 per unit
Bulk Quantities (100+ units): $0.30 - $0.80 per unit
Note: These prices are for the SG3525 IC chip only and do not include any additional components or assembly costs.
Where to Buy:
SG3525 Advantages
Precise PWM control: The sg3525 pwm controller module offers accurate duty cycle control, enabling efficient power conversion and motor speed regulation.
Wide supply voltage range: The IC can operate with a broad range of supply voltages, providing flexibility in various applications.
Flexibility in frequency adjustment: The adjustable frequency range allows customization to suit specific system requirements.
Dead-time control: The built-in dead-time control feature ensures proper switching in push-pull configurations, preventing shoot-through current.
SG3525 Disadvantages
Limited maximum duty cycle: The SG3525 has a maximum duty cycle of 50%, which may restrict certain applications requiring higher duty cycles.
External components required: To utilize the full functionality of the IC, additional external components such as resistors, capacitors, and feedback networks are necessary.
SG3525 vs TL494
The SG3525 and TL494 are both popular pulse-width modulation (PWM) controllers used in switching power supplies. While they share some similarities, there are also some key differences between the two ICs.
SG3525 vs TL494 Similarities:
* Both are PWM controllers designed for use in switching power supplies.
* Both have an internal oscillator, error amplifier, and output drivers.
* Both can be used in a variety of topologies, including buck, boost, and flyback converters.
SG3525 vs TL494 Differences:
Output Current: The SG3525 has a higher output current capability (200mA) than the TL494 (100mA). This makes the SG3525 more suitable for driving higher power MOSFETs.
Dead Time Control: The SG3525 has built-in dead time control, which helps to reduce switching losses and improve efficiency. The TL494 does not have this feature, so external dead time control circuitry is required.
Error Amplifier Gain:The error amplifier gain of the SG3525 is fixed at 100, while the TL494 has an adjustable error amplifier gain. This gives the TL494 more flexibility in setting the loop gain of the power supply.
Oscillator Frequency: The SG3525 has a fixed oscillator frequency of 100kHz, while the TL494 has an adjustable oscillator frequency. This allows the TL494 to be used in a wider range of applications.
SG3525 vs TL494 Package: The SG3525 is available in a 16-pin DIP or SOIC package, while the TL494 is available in a 16-pin DIP or SOP package.
The SG3525 is a good choice for applications where high output current capability and dead time control are important. The TL494 is a more versatile choice for applications where adjustable oscillator frequency and error amplifier gain are required.
SG3525 vs TL494 Which One to Choose?
The best choice between the SG3525 and TL494 depends on the specific requirements of the application. If high output current capability and dead time control are important, then the SG3525 is a good choice. If adjustable oscillator frequency and error amplifier gain are required, then the TL494 is a better choice.
SG3525 VS SG3524 SG3526 SG2525
The SG3525, SG3524, SG3526, and SG2525 are all PWM controllers from ON Semiconductor. They are all designed for use in switching power supplies, but they have different features and capabilities.
SG3525
* Fixed oscillator frequency (100kHz)
* Built-in dead time control
* Error amplifier gain fixed at 100
* Output current capability: 200mA
* Package: 16-pin DIP or SOIC
SG3524
* Adjustable oscillator frequency (50kHz to 500kHz)
* No built-in dead time control
* Error amplifier gain fixed at 100
* Output current capability: 100mA
* Package: 16-pin DIP or SOIC
SG3526
* Adjustable oscillator frequency (20kHz to 500kHz)
* Built-in dead time control
* Error amplifier gain adjustable from 50 to 200
* Output current capability: 200mA
* Package: 16-pin DIP or SOIC
SG2525
* Adjustable oscillator frequency (20kHz to 500kHz)
* No built-in dead time control
* Error amplifier gain adjustable from 50 to 200
* Output current capability: 100mA
* Package: 16-pin DIP or SOIC

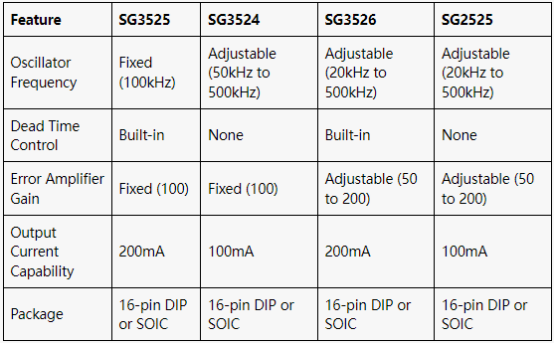

Comparison:
Summary:
* The SG3525 is a good choice for applications where high output current capability and dead time control are important.
* The SG3524 is a good choice for applications where adjustable oscillator frequency is required, but dead time control is not necessary.
* The SG3526 is a good choice for applications where adjustable oscillator frequency and error amplifier gain are required, and dead time control is important.
* The SG2525 is a good choice for applications where adjustable oscillator frequency and error amplifier gain are required, but dead time control is not necessary.
Which One to Choose?
The best choice between the SG3525, SG3524, SG3526, and SG2525 depends on the specific requirements of the application. If high output current capability and dead time control are important, then the SG3525 or SG3526 is a good choice. If adjustable oscillator frequency is required, then the SG3524 or SG3526 is a good choice. If adjustable error amplifier gain is also required, then the SG3526 or SG2525 is a good choice.
Specifications
- Manufacturer :
- STMicroelectronics
- Product Category :
- DC DC Switching Controllers
- Analog IC - Other Type :
- SWITCHING CONTROLLER
- Base Part Number :
- SG3525A
- Control Features :
- Enable, Frequency Control, Soft Start
- Control Mode :
- VOLTAGE-MODE
- Control Technique :
- PULSE WIDTH MODULATION
- Duty Cycle (Max) :
- 49%
- ECCN Code :
- EAR99
- Factory Lead Time :
- 4 Weeks
- Frequency :
- 400kHz
- Frequency - Switching :
- 100Hz~400kHz
- Function :
- Step-Up/Step-Down
- Height Seated (Max) :
- 4.44mm
- Input Voltage (Max) :
- 35V
- Input Voltage (Min) :
- 8V
- Input Voltage-Nom :
- 20V
- JESD-609 Code :
- e3
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 16 hours ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Number of Outputs :
- 2
- Number of Pins :
- 16
- Number of Terminations :
- 16
- Operating Temperature :
- 0°C~70°C TA
- Output Configuration :
- Positive
- Output Current :
- 100mA
- Output Phases :
- 1
- Output Type :
- Transistor Driver
- Output Voltage :
- 18V
- Package / Case :
- 16-DIP (0.300, 7.62mm)
- Packaging :
- Tube
- Part Status :
- Active
- Pbfree Code :
- yes
- Peak Reflow Temperature (Cel) :
- 260
- Published :
- 2011
- Qualification Status :
- Not Qualified
- RoHS Status :
- ROHS3 Compliant
- Surface Mount :
- No
- Synchronous Rectifier :
- yes
- Terminal Finish :
- Tin (Sn)
- Terminal Position :
- Dual
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Topology :
- Push-Pull
- Voltage - Supply (Vcc/Vdd) :
- 8V~35V
Datasheets
- Datasheets
- SG3525AN
Product comparison
-
ImagePart NumberManufacturerToleranceVoltage - RatedProduct StatusPackage / CaseProduct CategoryView Compare
-
-
-
-
16-DIP (0.300, 7.62mm)
DC DC Switching Controllers
-
-
-
-
16-DIP (0.300, 7.62mm)
DC DC Switching Controllers
-
-
-
-
16-SOIC (0.295, 7.50mm Width)
DC DC Switching Controllers
-
-
-
-
16-SOIC (0.295, 7.50mm Width)
DC DC Switching Controllers
- Share this post
-
Frequently Asked Questions
Can 78L05 replace LP2950Z?
No, the 78L05 cannot directly replace the LP2950Z. The 78L05 is a linear voltage regulator, while the LP2950Z is a low-dropout (LDO) voltage regulator. LDO regulators have several advantages over linear regulators, including lower dropout voltage, lower quiescent current, and better transient response. If you need to replace an LP2950Z, you should use another LDO regulator with similar specifications. Some possible replacements include the LM2940Z, LT1963, and TPS7A4700.
How to use SG3525?
To use the SG3525, you will need to connect the following components: Input voltage Output voltage Feedback resistor Timing resistors and capacitors MOSFETs Inductor Transformer (if necessary) , and refer to SG3525 datasheet pdf
What is SG3525?
The SG3525 is a PWM controller from ON Semiconductor. It is designed for use in switching power supplies. The SG3525 has a fixed oscillator frequency of 100kHz, built-in dead time control, and an error amplifier gain fixed at 100. It is available in a 16-pin DIP or SOIC package.
What is PWM?
Pulse-width modulation (PWM) or pulse-duration modulation (PDM) is a technique for decreasing the average power produced by an electrical signal by basically slicing it into discrete bits. The average voltage (and current) provided to the load is adjusted by rapidly turning on and off the supply-load switch.
Where does SG3525 can be used?
SG3525 is mainly used in DC-DC inverters, switching regulators of any polarity, and used for regulating the power supply.
How many pins does SG3525 have?
16 pins.
