Manufacturer :

Texas Instruments

Product Category :

Power Management - Specialized

Ambient Temperature Range High :

125°C

Applications :

Transformer Driver

Base Part Number :

SN6505

Contact Plating :

Gold

ECCN Code :

EAR99

Factory Lead Time :

6 Weeks

Height :

1.45mm

Interface IC Type :

INTERFACE CIRCUIT

JESD-609 Code :

e4

Lead Free :

Lead Free

Length :

2.9mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Max Input Voltage :

5.5V

Max Junction Temperature (Tj) :

150°C

Max Output Current :

1A

Min Input Voltage :

2.2V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

Mounting Type :

Surface Mount

Nominal Supply Current :

1.56mA

Number of Functions :

1

Number of Outputs :

1

Number of Pins :

6

Number of Terminations :

6

Operating Supply Current :

1.56mA

Operating Supply Voltage :

5.5V

Operating Temperature :

-55°C~125°C

Output Current :

1A

Output Type :

Adjustable

Output Voltage :

16V

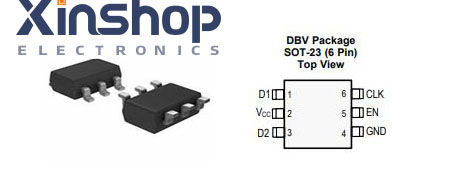

Package / Case :

SOT-23-6

Packaging :

Tape and Reel (TR)

Part Status :

Active

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Supply Voltage :

5V

Switching Frequency :

424kHz

Terminal Form :

Gull wing

Terminal Pitch :

0.95mm

Terminal Position :

Dual

Thickness :

1.2mm

Voltage - Supply :

2.25V~5.5V

Width :

1.6mm
