The STM32F207ZGT6 is a powerful microcontroller from STMicroelectronics, equipped with an ARM Cortex-M3 core. It offers a wide range of features and capabilities that make it suitable for a variety of embedded applications. In this article, we will delve into the datasheet, pinout, and specifications of the STM32F207ZGT6 to provide a comprehensive overview of its functionalities.

The STM32F207ZGT6 is a microcontroller from STMicroelectronics.

It is part of the STM32F2 series, which is based on the ARM Cortex-

M3 processor core.

This microcontroller features a wide range of peripherals and interfaces,

including GPIOs, UARTs, SPI, I2C, USB, Ethernet, and more. It also has a

 large amount of flash memory and RAM, allowing for the execution of

complex applications.

The STM32F207ZGT6 is commonly used in a variety of applications such

 as industrial control systems, consumer electronics, and automotive

 applications, where high-performance and connectivity features are

 required.

STM32F207ZGT6 Pinout Description

The pinout of the STM32F207ZGT6 defines the arrangement and functions of its various pins. This microcontroller comes in a package with 144 pins, and each pin has a specific purpose and functionality. The pinout diagram provides a visual representation of the pin assignments, allowing developers to connect external components, peripherals, and interfaces correctly. It is essential to refer to the pinout diagram while designing the circuitry and connecting external devices to ensure proper functionality.

Symbol

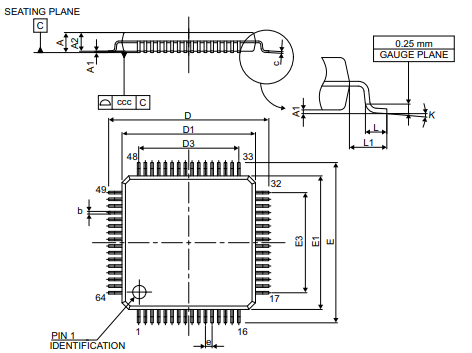

Footprint

3D-Model

The STM32F207ZGT6 offers a rich set of specifications that contribute to its versatility and performance. Here are some key specifications of this microcontroller:

1. Core: The STM32F207ZGT6 integrates an ARM Cortex-M3 core running at a maximum frequency of 120 MHz. The Cortex-M3 core is known for its excellent performance and energy efficiency.

2. Memory: It features up to 1 MB of Flash memory for program storage and up to 128 KB of SRAM for data storage. This ample memory capacity enables the implementation of complex applications and efficient data handling.

3. Peripherals: The microcontroller offers a wide range of peripherals, including UART, SPI, I2C, USB, Ethernet, and more. These peripherals enable seamless communication and interaction with external devices and interfaces.

4. Analog Features: The STM32F207ZGT6 incorporates a 12-bit ADC (Analog-to-Digital Converter) with multiple channels, enabling precise analog signal acquisition. It also includes DAC (Digital-to-Analog Converter) channels for generating analog output signals.

5. Power Supply: The microcontroller operates with a supply voltage ranging from 2.0V to 3.6V, making it compatible with various power sources. It also incorporates power-saving modes and features to optimize energy consumption.

Detailed Features

· Core: Arm® 32-bit Cortex®-M3 CPU (120 MHz

max) with Adaptive real-time accelerator (ART

Accelerator™) allowing 0-wait state execution

performance from Flash memory, MPU,

150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)

· Memories

– Up to 1 Mbyte of Flash memory

– 512 bytes of OTP memory

– Up to 128 + 4 Kbytes of SRAM

– Flexible static memory controller that

supports Compact Flash, SRAM, PSRAM,

NOR and NAND memories

– LCD parallel interface, 8080/6800 modes

· Clock, reset and supply management

– From 1.8 to 3.6 V application supply + I/Os

– POR, PDR, PVD and BOR

– 4 to 26 MHz crystal oscillator

– Internal 16 MHz factory-trimmed RC

– 32 kHz oscillator for RTC with calibration

– Internal 32 kHz RC with calibration

· Low-power modes

– Sleep, Stop and Standby modes

– VBAT supply for RTC, 20 × 32 bit backup

registers, and optional 4 Kbytes backup

SRAM

· 3 × 12-bit, 0.5 µs ADCs with up to 24 channels

and up to 6 MSPS in triple interleaved mode

· 2 × 12-bit D/A converters

· General-purpose DMA: 16-stream controller

with centralized FIFOs and burst support

· Up to 17 timers

– Up to twelve 16-bit and two 32-bit timers,

up to 120 MHz, each with up to four

IC/OC/PWM or pulse counter and

quadrature (incremental) encoder input

· Debug mode: Serial wire debug (SWD), JTAG,

and Cortex®-M3 Embedded Trace Macrocell™

· Up to 140 I/O ports with interrupt capability:

– Up to 136 fast I/Os up to 60 MHz

– Up to 138 5 V-tolerant I/Os

· Up to 15 communication interfaces

– Up to three I2C interfaces (SMBus/PMBus)

– Up to four USARTs and two UARTs

(7.5 Mbit/s, ISO 7816 interface, LIN, IrDA,

modem control)

– Up to three SPIs (30 Mbit/s), two with

muxed I2S to achieve audio class accuracy

via audio PLL or external PLL

– 2 × CAN interfaces (2.0B Active)

– SDIO interface

· Advanced connectivity

– USB 2.0 full-speed device/host/OTG

controller with on-chip PHY

– USB 2.0 high-speed/full-speed

device/host/OTG controller with dedicated

DMA, on-chip full-speed PHY and ULPI

– 10/100 Ethernet MAC with dedicated DMA:

supports IEEE 1588v2 hardware, MII/RMII

· 8- to 14-bit parallel camera interface

(48 Mbyte/s max.)

· CRC calculation unit

· 96-bit unique ID

Swipe to the end of the article to get STM32F207ZGT6 datasheet pdf

The STM32F207ZGT6 is a feature-rich microcontroller that provides a wide range of capabilities for embedded applications. Its datasheet serves as a valuable resource for understanding its architecture and programming details. The pinout diagram helps in correctly connecting external components and interfaces, while the specifications highlight its performance and functionality. With its powerful ARM Cortex-M3 core and extensive set of peripherals, the STM32F207ZGT6 is a versatile choice for developers working on diverse embedded projects.
