What is VNH5180ATR-E?

The VNH5180A-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. Both switches are designed using STMicroelectronics’ well known and proven proprietary VIPower® M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The three dies are assembled in PowerSSO-36 TP package on electrically isolated leadframes. This package, specifically designed for the harsh automotive environment offers improved thermal performance thanks to exposed die pads. Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level. The input signals INA and INB can directly interface to the microcontroller to select the motor direction and the brake condition.

The DIAGA/ENA or DIAGB/ENB, when connected to an external pull-up resistor, enables one leg of the bridge. Each DIAGA/ENA provides a feedback digital diagnostic signal as well. The normal operating condition is explained in the truth table. The CS pin allows to monitor the motor current by delivering a current proportional to its value when CS_DIS pin is driven low or left open. When CS_DIS is driven high, CS pin is in high impedance condition. The PWM, up to 20 KHz, allows to control the speed of the motor in all possible conditions. In all cases, a low level state on the PWM pin turns off both the LSA and LSB switches.

VNH5180ATR-E

It has an output current of 8A and can operate at a voltage range of 5.5V to 18V. This product is suitable for use in automotive applications and has a temperature range of -40°C to 150°C. It comes in a PowerSSO-36 package and is RoHS compliant.

Symbol

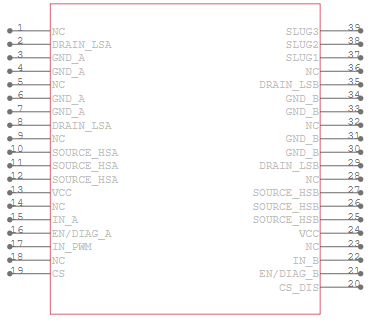

Footprint

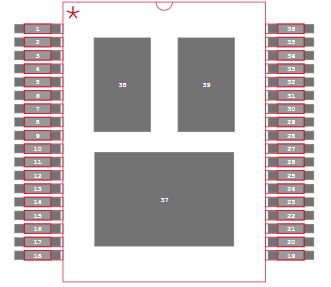

3D-Model

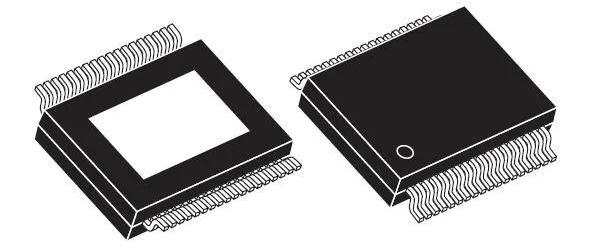

 *Output current: 8 A

*3 V CMOS compatible inputs

*Undervoltage shutdown

*Overvoltage clamp

*Thermal shutdown

*Cross-conduction protection

*Current and power limitation

*Very low standby power consumption

*PWM operation up to 20 KHz

*Protection against loss of ground and loss of Vcc

*Current sense output proportional to motor

current

*Output protected against short to ground and

short to Vcc

*Package: ECOPACK@

The VNH5180ATR-E is a versatile dual full-bridge motor driver capable of driving two DC motors or one bipolar stepper motor. Its applications include:

Robotics: Controlling motors for locomotion, manipulation, and other robotic tasks.

Industrial Automation: Driving motors in conveyor belts, packaging machines, and other industrial equipment.

Automotive: Controlling motors for window lifts, seat adjustments, and other automotive applications.

Hobbyist Projects: Building RC cars, drones, and other hobbyist projects requiring motor control.

Educational Projects: Learning about motor control principles and implementing them in practical applications.

Several alternatives offer similar functionality to the VNH5180ATR-E:

DRV8833: Dual H-Bridge motor driver with similar features and capabilities.

L298N: Popular and affordable dual H-Bridge motor driver with lower current capacity.

BTS7960: Dual full-bridge motor driver with higher current capacity and integrated current sensing.

TMC2209: Stepper motor driver with microstepping and stall detection features.

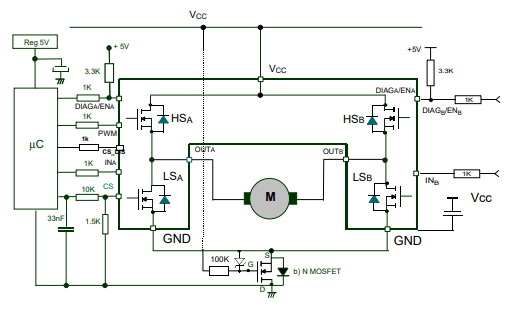

VNH5180ATR-E Functional Block Diagram

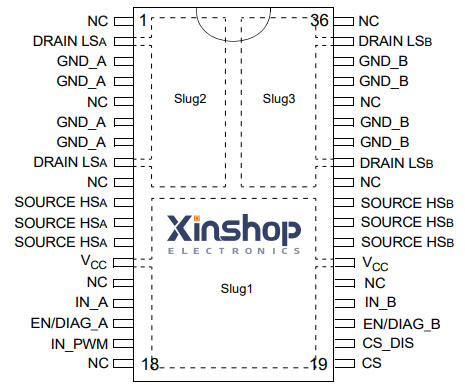

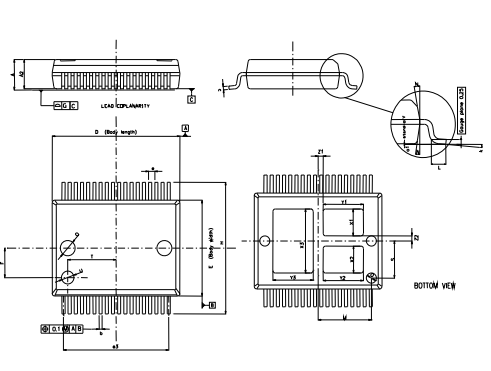

VNH5180ATR-E Package information

Using the VNH5180ATR-E involves the following steps:

1. Power Supply: Connect the motor driver to a suitable power supply with appropriate voltage and current ratings.

2. Motor Connections: Connect the motor(s) to the designated output pins of the driver.

3. Control Signals: Provide control signals (PWM or direction) to the driver's input pins to control the motor speed and direction.

4. Enable Pin: Enable the driver using the dedicated enable pin.

5. Additional Features: Utilize additional features like current sensing, overcurrent protection, and thermal shutdown as needed.

Resources:

* **VNH5180ATR-E Datasheet:** https://www.st.com/resource/en/datasheet/vnh5180atr.pdf

* **VNH5180ATR-E Application Note:** https://www.st.com/resource/en/application_note/dm00128378-vnh5180atr-dual-full-bridge-motor-driver-stmicroelectronics.pdf

* **VNH5180ATR-E Evaluation Board:** https://www.st.com/en/evaluation-tools/steval-vnh5180atr.html
