Transistors are essential electronic components that play a crucial role in amplification and switching circuits. They are widely used in various electronic applications, from consumer electronics to industrial equipment. Among the many types of transistors available, the C1815 is a popular choice due to its versatility and reliability.
C1815 Transistor:
The C1815 is a general-purpose NPN bipolar junction transistor (BJT). It is designed to handle low to medium power levels and is commonly used in amplification and switching applications. The transistor is manufactured in a TO-92 package, which is a small and widely used package type in the electronics industry.
C1815 Pinout:

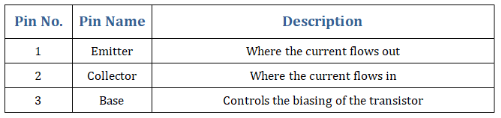

The C1815 transistor has three pins: the collector (C), the base (B), and the emitter (E). In the TO-92 package, the pins are arranged in a linear configuration, with the emitter pin on one end and the collector pin on the other end. The base pin is located in the middle.
C1815 Description:
The C1815 is designed for use in low power amplification and switching applications. It has a maximum collector current (Ic) rating of 150mA, a maximum collector-emitter voltage (Vce) rating of 50V, and a maximum power dissipation (Pd) rating of 400mW. The transistor has a low saturation voltage and a high current gain, making it suitable for a wide range of electronic circuits.
C1815 CAD-Model:
Symbol
Footprint
3D-MODEL
C1815 Alternatives:
BC547 transistor
The BC547 has similar electrical characteristics to the C1815 and is available in the same TO-92 package.
C1815 Applications:
The C1815 transistor finds applications in a variety of electronic circuits. Some common applications include audio amplifiers, signal amplification stages, voltage regulators, and low power switching circuits. Its versatility and cost-effectiveness make it a suitable choice for many hobbyist and educational projects as well.
C1815 Diagram:
A typical C1815 transistor circuit diagram consists of the transistor connected in a specific configuration depending on the desired application. The diagram may include resistors, capacitors, and other components to achieve the desired circuit behavior.
C1815 Package Dimension:
The C1815 transistor is available in a TO-92 package, which has specific dimensions. The package dimensions may vary slightly between manufacturers, but typically the TO-92 package has a length of around 4.8mm, a width of around 4.8mm, and a height of around 3.8mm.
How to Test C1815 Transistor?
To test a C1815 transistor, you can use a multimeter in diode test mode. Connect the black probe of the multimeter to the emitter pin and the red probe to the base pin. The multimeter should show a voltage drop of around 0.6V to 0.7V. Then, switch the probes and connect the black probe to the emitter pin and the red probe to the collector pin. The multimeter should show an open circuit or a very high resistance value. These tests can help verify the basic functionality of the transistor.
Where to Find C1815 Transistor?
The C1815 transistor can be found at various electronics component suppliers, both online and offline. Popular online platforms like Digi-Key, Mouser, and RS Components stock a wide range of electronic components, including the C1815 transistor. Local electronic stores and specialized hobbyist shops may also carry this transistor.
Is C1815 Compatible with BC547 Transistor?
The C1815 and BC547 transistors are similar in many aspects, including their electrical characteristics and package type. In most cases, they can be used as interchangeable alternatives, especially in low to medium power applications. However, it is always recommended to refer to the datasheets of both transistors to ensure compatibility for a specific circuit. The datasheets provide detailed electrical specifications, pin configurations, and other important information that can help in selecting the appropriate transistor for a given application.
*C1815 vs BC547:
When comparing the C1815 and BC547 transistors, they have similar electrical characteristics, such as maximum collector current, maximum collector-emitter voltage, and power dissipation. However, there may be some variations in parameters like current gain (hFE) and frequency response. It is advisable to consult the datasheets of both transistors to determine the best choice for a particular circuit.
In conclusion, the C1815 transistor is a widely used NPN transistor with a TO-92 package. It is suitable for low to medium power applications and finds use in amplification and switching circuits. The transistor can be tested using a multimeter, and it can be found at various electronic component suppliers. It is generally compatible with the BC547 transistor, but it is important to refer to the datasheets for specific circuit requirements. Both transistors have similar characteristics but may have variations in certain parameters.
