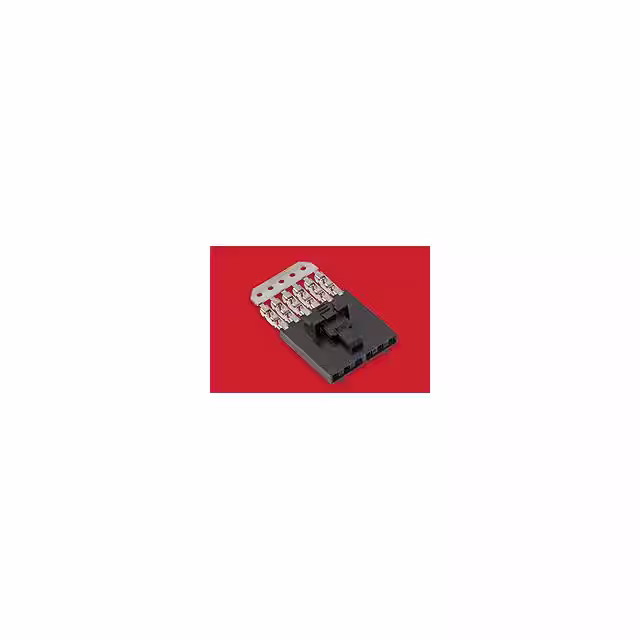

14-60-0044

Manufacturer :

Molex

Product Category :

Free Hanging, Panel Mount

Mixed Contacts :

No

Product Category :

Headers and Wire Housings

Type :

Receptacle Housing

Reach Compliance Code :

Unknown

Wire/Cable Type :

Discrete Wire

Mounting Style :

Cable Mount / Free Hanging

Contact Gender :

Socket (Female)

Packaging :

Tube

Product Status :

Active

Flammability Rating :

UL 94 V-0

Body Depth :

0.6 inch

Product Type :

Headers and Wire Housings

Product :

Wire Housings

Contact Finish Termination :

Gold

Durability :

25 Cycles

Contact Style :

SQ PIN-SKT

Housing Color :

Black

Wire Gauge :

26 AWG

Voltage Rating :

250 V

Minimum Operating Temperature :

- 40 C

Body/Shell Style :

PLUG

Number of Rows :

1

Total Number of Contacts :

4

Current Rating :

3 A

HTS Code :

8536.69.40.40

Plating Thickness :

150u inch

Contact Plating :

Tin

Contact Pattern :

RECTANGULAR

Reference Standard :

UL, CSA

Pbfree Code :

yes

Insulator Color :

Black

Mounting Angle :

Straight

Mounting Type :

CABLE

ECCN Code :

EAR99

Housing Material :

Polyester

Contact Resistance :

30 mΩ

DIN Conformance :

No

Pitch :

2.54 mm

Mounting Option 1 :

LOCKING

Insertion Force-Max :

2.224 N

Rated Current (Signal) :

3 A

IEC Conformance :

No

Additional Feature :

SL

Termination Style :

IDC

Maximum Operating Temperature :

+ 105 C

Component Type :

Housing

Termination Type :

IDC

Tradename :

C-Grid, SL

Manufacturer :

Molex

UL Flammability Code :

94V-0

Brand :

Molex

Insulation Resistance :

10000000000 Ω

Option :

GENERAL PURPOSE

Package :

Box

Contact Material :

Tin

Subcategory :

Headers and Wire Housings

Number of Positions :

4 Position

Body Breadth :

0.139 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS :

Details

Series :

70400

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Contact Design :

PREASSEM CONN

Connector Type :

BOARD CONNECTOR

MIL Conformance :

No

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL
