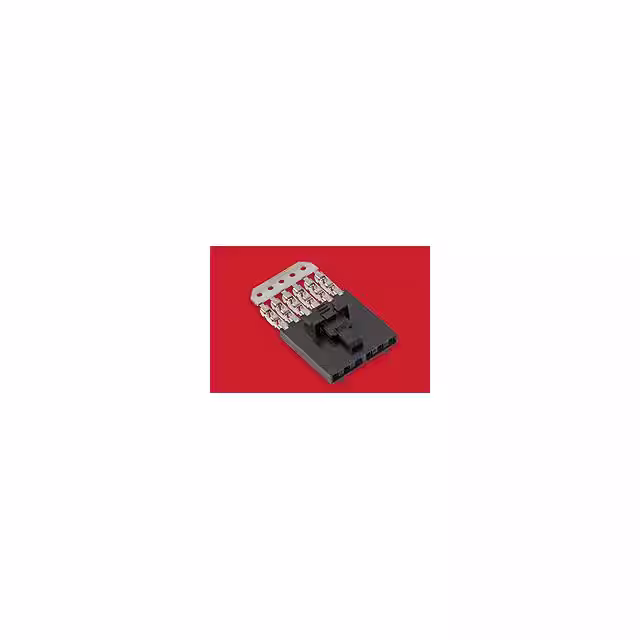

14-60-0046

Manufacturer :

Molex

Product Category :

Free Hanging, Panel Mount

Wire Gauge :

28 AWG

Wire/Cable Type :

Discrete Wire

Total Number of Contacts :

4

Insulator Color :

Black

Maximum Operating Temperature :

+ 105 C

IEC Conformance :

No

Current Rating (Max) :

3/Contact(A)

Contact Style :

SQ PIN-SKT

Contact Finish Termination :

TIN (150) OVER NICKEL

Operating Temp Range :

-40C to 105C

Body Breadth :

0.139 inch

Contact Plating :

TIN OVER NICKEL

Mounting Option 1 :

LOCKING

Product Length (mm) :

10.13(mm)

Mounting Angle :

Straight

Reach Compliance Code :

Unknown

Rated Current (Signal) :

1.2 A

Body Orientation :

Straight

Mounting Type :

CABLE

Voltage Rating :

250 V

Additional Feature :

SL

Housing Color :

Black

Mixed Contacts :

No

Contact Resistance :

30 mΩ

Contact Material :

Phosphor Bronze

Flammability Rating :

UL 94 V-0

Number of Contacts :

4(POS)

Minimum Operating Temperature :

- 40 C

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Product Type :

Headers and Wire Housings

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Packaging :

Tube

Body Depth :

0.6 inch

MIL Conformance :

No

Body/Shell Style :

PLUG

Factory Lead Time :

5 Weeks

Plating Thickness :

150u inch

Current Rating :

3 A

Number of Positions :

4 Position

Insertion Force-Max :

2.224 N

Gender :

F

Contact Resistance Max :

15(mohm)

Durability :

25 Cycles

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination Style :

IDC

Product :

Wire Housings

Termination Method :

IDT

RoHS :

Details

Insulation Resistance :

10000000000 Ω

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Voltage Rating Max :

250V

Mounting Style :

CABLE

Connector Type :

BOARD CONNECTOR

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e3

Pitch :

2.54 mm

Product Status :

Active

Pitch (mm) :

2.54(mm)

Type :

IDC Connector

Package :

Box

Number of Rows :

1

Manufacturer :

Molex

Series :

70400

Housing Material :

Polyester

Option :

GENERAL PURPOSE

Component Type :

Housing

Mating Contact Pitch :

0.1 inch

Product Depth (mm) :

15.24(mm)

Contact Gender :

Socket (Female)

DIN Conformance :

No

Tradename :

C-Grid, SL

Subcategory :

Headers and Wire Housings

Product Category :

Headers and Wire Housings

Number of Contact Rows :

1

ECCN Code :

EAR99

Brand :

Molex

Product Height (mm) :

6.58(mm)

Termination Type :

IDC

Reference Standard :

UL, CSA
