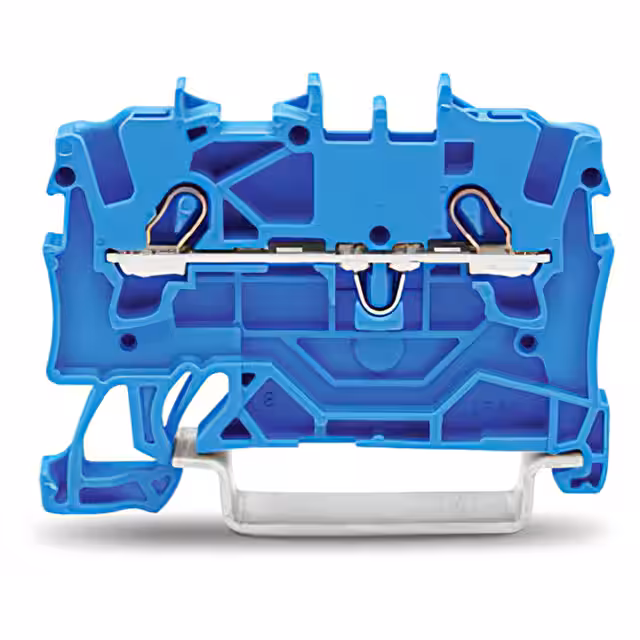

2001-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

AWG (min.) :

22

Terminal - Width :

4.2mm

Connection :

-

Housing Color :

Blue

Rated Voltage :

800V

Material Flammability Rating :

UL94 V-0

Termination Method :

Push In

Voltage - UL :

600V

Content :

1pc(s)

Number of Ways :

2

Product Depth (mm) :

4.2(mm)

Stripping Length :

9mm ~ 11mm

Rated Current :

18A

Rad Hardened :

No

Current - UL :

15 A

Type :

Terminal Block

Pins per row :

2

Series :

2001

Clamp width :

4.20mm

Number of Positions :

2

Product Status :

Active

Cross section (inflexible) (max.) :

1.50mm²

Current Rating :

18A

Nominal current - rounded value :

18A

Wire Gauge or Range - mm² :

0.25-2.5mm²

No. of rows :

1

Number of Contact Rows :

2

Product Length (mm) :

48.5(mm)

Contact Pitch (mm) :

Not Required(mm)

Wire Size :

22 → 14 AWG

Disconnect Type :

-

Min. stripping length :

9mm

Current - IEC :

24 A

Number of Levels :

1

Nominal voltage :

800V

Color :

Blue

Mounting Style :

T DIN RAIL

Wire Gauge or Range - AWG :

14-22 AWG

Cross section (inflexible) (min.) :

0.25mm²

Features :

-

Stripping length (max.) :

11mm

Fuse Type :

-

Manufacturer part # :

2001-1204

Termination Style :

Push In, Spring

Voltage - IEC :

800V

Current Rating (Max) :

24(A)

Housing Material :

Polyamide 6/6

Width :

4.20mm

Weight :

0.04

Number of Contacts :

2(POS)

Wire Gauge :

14-22(AWG)

Nominal current (details) :

18A

Packaging :

Box

Package :

Box

AWG max. :

14

Configuration :

N

Product Height (mm) :

33(mm)

Cross section (flexible) (min.) :

0.25mm²

Cross section (flexible) (max.) :

2.50mm²

Nominal current :

18A

Material - Insulation :

Polyamide (PA66), Nylon 6/6
