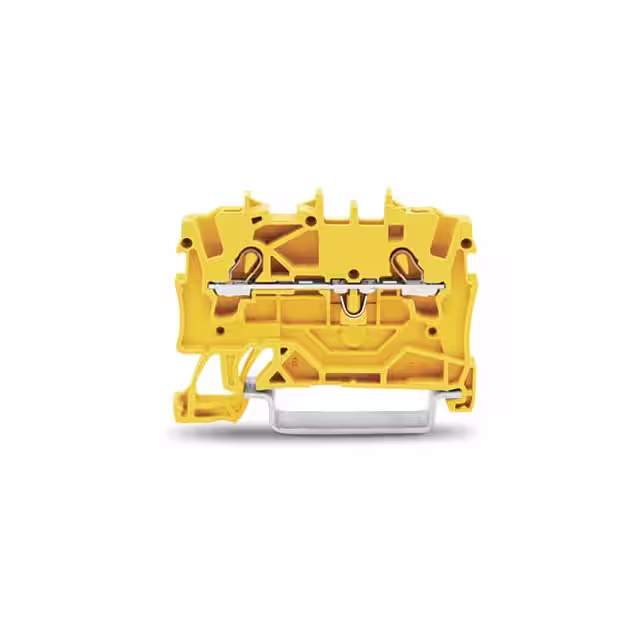

2001-1206

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Height :

48.5

Wire Gauge or Range - mm² :

0.25-2.5mm²

Mounting Type :

DIN Rail

Depth :

32.9

Series :

TOPJOB®S

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Termination Method :

Spring Clamp

Packaging :

Box

Approvals :

CSA, cURus

Connectable conductor cross section multi-wired :

0.25 - 1.5

EU RoHS :

Compliant

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section solid-core :

0.5 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Maximum Current Rating (A) :

15

Product Status :

Active

Current - IEC :

24 A

Rad Hardened :

No

Number of Circuits :

1

Mounting :

T DIN RAIL

Color :

Yellow

Disconnect Type :

-

Fuse Type :

-

Number of Contacts :

2

Number of Levels :

1

Stripping Length :

9mm ~ 11mm

Number of Positions :

2

Voltage - UL :

600V

Rated current In :

18

Width :

4.2

Manufacturer :

Wago

Type :

Terminal Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Wire Gauge or Range - AWG :

14-22 AWG

RoHS :

yes

Current - UL :

15 A

HTS :

8536.90.40.00

Package :

Box

Material Flammability Rating :

UL94 V-0

Length :

48.5

Automotive :

No

Features :

-

Termination Style :

Push In, Spring

PPAP :

No

Tradename :

CAGE CLAMP?

Voltage - IEC :

800V

Terminal - Width :

4.2mm
