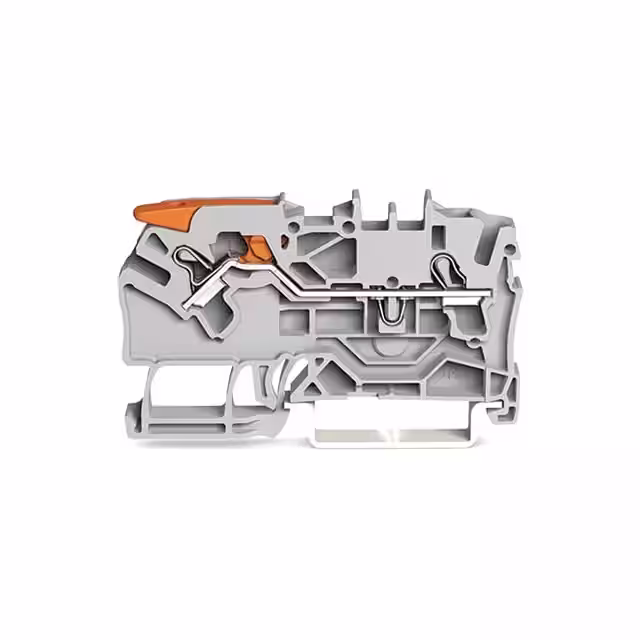

2102-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Manufacturer :

Wago

Fuse Type :

-

Cross section (flexible) (min.) :

0.25mm²

Cross section (flexible) (max.) :

2.50mm²

Series :

2102

Cross section (inflexible) (min.) :

0.25mm²

Features :

+ lever,+ CAGE CLAMP®

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Packaging :

Box

Content :

50pc(s)

Manufacturer part # :

2102-1201

No. of rows :

1

Min. stripping length :

10mm

EU RoHS :

Compliant

AWG (min.) :

22

Length :

61.5

Voltage Rating :

800 V

Current - UL :

20 A

Product Status :

Active

Approvals :

CSA, cURus

Width :

5.20mm

Clamp width :

5.20mm

Industrial packaging :

yes

Type :

Standard Block

Number of Circuits :

1

Current - IEC :

32 A

Rated current In :

24

Wire Gauge or Range - mm² :

0.25-4mm²

Terminal - Width :

5.2mm

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

Single

Rated Voltage :

800V

Stripping length (max.) :

12mm

AWG max. :

12

Voltage - IEC :

800V

Dim :

(W x H) 5.20 mm x 32.90 mm

Termination Style :

Push In, Spring

Height :

32.90mm

Maximum Operating Temperature :

+105°C

Pins per row :

2

Cross section (inflexible) (max.) :

4mm²

Nominal current - rounded value :

24A

Depth :

32.9

PPAP :

No

Number of Positions :

2

Termination Method :

Clamp

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

RoHS :

yes

Voltage - UL :

600V

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Automotive :

No

Rated Current :

24A

Material Flammability Rating :

UL94 V-0

Current Rating :

32A

Connection :

Push-in connector

Package :

Box

Disconnect Type :

-

Color :

Gray

Connectable conductor cross section multi-wired :

0.25 - 2.5

Connectable conductor cross section solid-core :

0.75 - 4

Wire Gauge or Range - AWG :

12-22 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Minimum Operating Temperature :

-35°C

Mounting Type :

DIN Rail

Nominal current :

24A

Stripping Length :

10mm ~ 12mm

Pitch :

5.2mm

ECCN (US) :

EAR99
