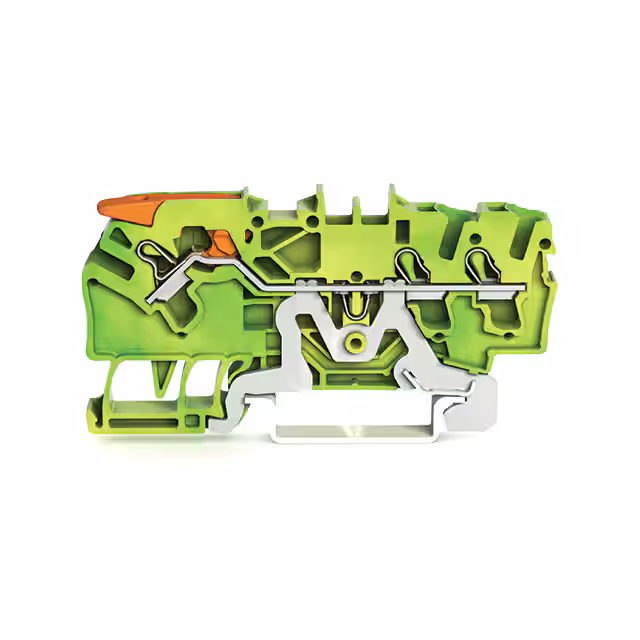

2102-1307

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Minimum Operating Temperature :

-35°C

Clamp width :

5.20mm

Number of Levels :

Single

Features :

+ lever,+ CAGE CLAMP®

Number of Circuits :

1

Material Flammability Rating :

UL94 V-0

Disconnect Type :

-

Connectable conductor cross section solid-core :

0.75 - 4

Nominal current - rounded value :

24A

Voltage - IEC :

-

Fuse Type :

-

No. of rows :

1

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Depth :

32.9

Packaging :

Box

Pins per row :

3

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Color :

Green, Yellow

Cross section (inflexible) (max.) :

4mm²

Min. stripping length :

10mm

Width :

5.20mm

Stripping length (max.) :

12mm

Automotive :

No

PPAP :

No

Wire Gauge or Range - AWG :

12-22 AWG

EU RoHS :

Compliant

Manufacturer part # :

2102-1307

Wire Gauge or Range - mm² :

0.25-4mm²

Maximum Operating Temperature :

+105°C

Reach Compliance Code :

Compliant

Cross section (flexible) (min.) :

0.25mm²

Connectable conductor cross section multi-wired :

0.25 - 2.5

Height :

32.90mm

Dim :

(W x H) 5.20 mm x 32.90 mm

Voltage - UL :

-

RoHS :

yes

Number of Positions :

3

Package :

Box

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Pitch :

5.2mm

Industrial packaging :

yes

Nominal current :

24A

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Rated Voltage :

800V

Approvals :

CSA, cURus

ECCN (US) :

EAR99

Mounting Type :

DIN Rail

Cross section (flexible) (max.) :

2.50mm²

Termination Style :

Push In, Spring

AWG max. :

12

Product Status :

Active

Stripping Length :

10mm ~ 12mm

Connection :

Push-in connector

Cross section (inflexible) (min.) :

0.25mm²

Manufacturer :

Wago

Series :

2102

Length :

72.2

Content :

50pc(s)

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

AWG (min.) :

22

Inflammability class of insulation material according to with UL94 :

V0

Termination Method :

Clamp

Type :

Grounding Block

Rated Current :

24A

Terminal - Width :

5.2mm
