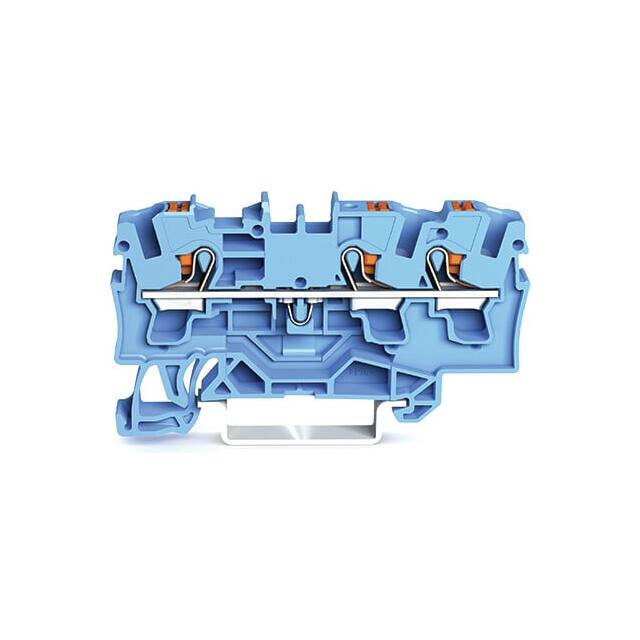

2204-1304

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Industrial packaging :

yes

Height :

32.90mm

Width :

6.20mm

Connectable conductor cross section multi-wired :

0.5 - 4

Wire Gauge or Range - mm² :

0.5-6mm²

Length :

65.50mm

Voltage - UL :

600V

Number of Positions :

3

Cross section (inflexible) (max.) :

6mm²

AWG max. :

10

Minimum Operating Temperature :

-35°C

Nominal voltage :

800V

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Disconnect Type :

-

Wire Gauge or Range - AWG :

10-20 AWG

Cross section (flexible) (min.) :

0.50mm²

Product Status :

Active

Stripping length (max.) :

13mm

Package :

Box

Min. stripping length :

11mm

Connectable conductor cross section solid-core :

1 - 6

Manufacturer :

Wago

RoHS :

yes

Number of Levels :

Single

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Cross section (inflexible) (min.) :

0.50mm²

Rated current In :

32

Depth :

32.9

Rated Voltage :

800V

Termination Method :

Clamp

Nominal current :

32A

Current - IEC :

41 A

Voltage - IEC :

800V

No. of rows :

1

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Stripping Length :

11mm ~ 13mm

Pins per row :

3

Current - UL :

30 A

Manufacturer part # :

2204-1304

Mounting Type :

DIN Rail

Connection :

Push-in connector

Rated Current :

32A

Number of Circuits :

1

Type :

Standard Block

Fuse Type :

-

AWG (min.) :

20

Features :

+ latchkey,+ CAGE CLAMP®

Content :

50pc(s)

Nominal current - rounded value :

32A

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (max.) :

4mm²

Terminal - Width :

6.2mm

Material Flammability Rating :

UL94 V-0

Clamp width :

6.20mm

Approvals :

CSA, cURus

Maximum Operating Temperature :

+105°C

Termination Style :

Push In, Spring

Series :

2204

Current Rating :

41A

Color :

Blue

Voltage Rating :

800 V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Dim :

(L x W x H) 65.50 x 6.20 x 32.90 mm

Pitch :

6.2mm
