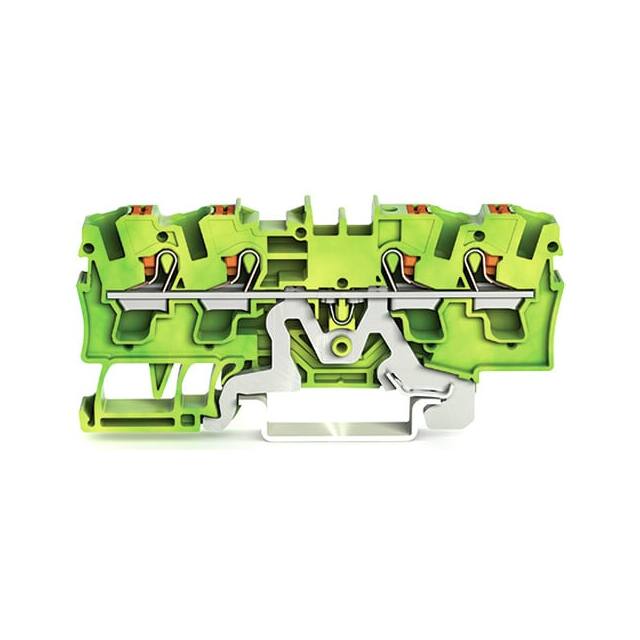

2204-1407

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Color :

Green, Yellow

RoHS :

yes

Disconnect Type :

-

Clamp width :

6.20mm

Number of Circuits :

1

Maximum Operating Temperature :

+105°C

Approvals :

CSA, cURus

Connectable conductor cross section multi-wired :

0.5 - 4

Mounting Type :

DIN Rail

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated Voltage :

800V

Nominal current :

32A

Inflammability class of insulation material according to with UL94 :

V0

Pitch :

6.2mm

Minimum Operating Temperature :

-35°C

Height :

32.90mm

Package :

Box

Content :

50pc(s)

Nominal current - rounded value :

32A

Fuse Type :

-

AWG (min.) :

20

Cross section (inflexible) (max.) :

6mm²

Termination Method :

Clamp

Cross section (inflexible) (min.) :

0.50mm²

Depth :

32.9

Type :

Grounding Block

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Voltage - UL :

-

Voltage - IEC :

-

Reach Compliance Code :

Unknown

Stripping Length :

11mm ~ 13mm

Product Status :

Active

Wire Gauge or Range - mm² :

0.5-6mm²

Connection :

Push-in connector

Terminal - Width :

6.2mm

Rated Current :

32A

Stripping length (max.) :

13mm

Number of Levels :

Single

Wire Gauge or Range - AWG :

10-20 AWG

No. of rows :

1

Pins per row :

4

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

AWG max. :

10

Cross section (flexible) (min.) :

0.50mm²

Material Flammability Rating :

UL94 V-0

Min. stripping length :

11mm

Dim :

(L x W x H) 78.70 x 6.20 x 32.90 mm

Manufacturer part # :

2204-1407

Series :

2204

Features :

+ latchkey,+ CAGE CLAMP®

Length :

78.70mm

Termination Style :

Push In, Spring

Number of Positions :

4

Industrial packaging :

yes

Width :

6.20mm

Cross section (flexible) (max.) :

4mm²

Connectable conductor cross section solid-core :

1 - 6

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK
