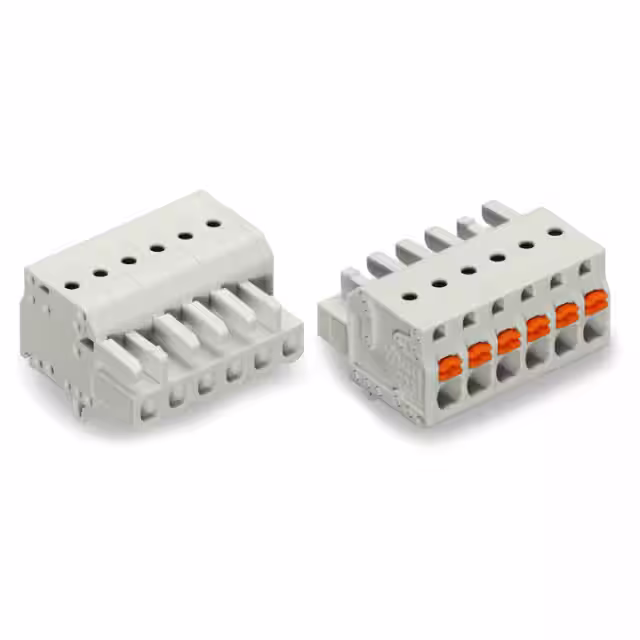

2721-105/008-000

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Stripping Length :

10-11 mm

Ingress Protection :

-

Rated current In :

16

EU RoHS :

Compliant

Material contact :

Other copper alloys

Automotive :

No

Connectable conductor cross section solid-core :

0.2 - 2.5

Type :

Plug, Female Sockets

Positions Per Level :

5

Product Status :

Active

Pollution degree :

2

Color :

Gray

Voltage :

300 V

Pitch :

0.197 (5.00mm)

Features :

Board Lock, Retention Latches (Non-Wire Side)

Material of contact surface :

Tin

Current - IEC :

16A

Size :

24-12 AWG

With protective conductor :

No

Temperature :

-60-100 °C

Manufacturer :

Wago

Contact Finish :

Tin

Mounting Type :

Free Hanging (In-Line)

Wire Strip Length :

10-11mm

Rated surge voltage :

4

Type of electric connection :

Spring clamp connection

Contact Tail Length :

-

Termination Style :

Screwless - Push-In Spring

Voltage - UL :

600 V

PPAP :

No

Connectable conductor cross section multi-wired :

0.2 - 2.5

Degree of protection (IP), mounted :

IP20

Package :

Box

Header Orientation :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Material Flammability Rating :

UL94 V-0

Series :

MCSMIDI

Wire Gauge or Range - mm² :

0.2-2.5mm²

ECCN (US) :

EAR99

Number of Positions :

5

Over voltage category :

III

Wire Size :

24-12 AWG

Current :

15 A

Material housing :

Plastic

Plug Wire Entry :

180°

Contact Material :

COPPER ALLOY

Number of Levels :

1

Insulation Height :

0.591 (15.00mm)

Number of Contacts :

5 Pole

Torque - Screw :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Voltage - IEC :

630 V

Contact Mating Finish :

Tin

Screw Size :

-

HTS :

8536.69.40.40

Approvals :

CB, CSA, UR

Housing Material :

Polyamide (PA66), Nylon 6/6

Current - UL :

15 A

Wire Gauge or Range - AWG :

12-24 AWG

Operating Temperature :

-60°C ~ 100°C

Inflammability class of insulation material according to with UL94 :

V0
